3-8 61200290L1-1G
Section 3, Configuration MX2800 M13 Multiplexer User Manual
3. T1/E1 INTERFACE
The T1/E1 Interface menu, see Figure 3-4, is used to activate/deactivate individual T1s and E1s and to set
their line coding, length, loopback detection, circuit protection, and line ID string. The T1/E1 code viola-
tion threshold is also configured through this menu. Configuration selections are described in the following
sections.
NOTE
A DS2 can be divided into either three E1s or four T1s. Therefore, when
dealing with an E1 configuration, some of the fields in the T1/E1
Interface menus do not apply (and therefore display N/A).

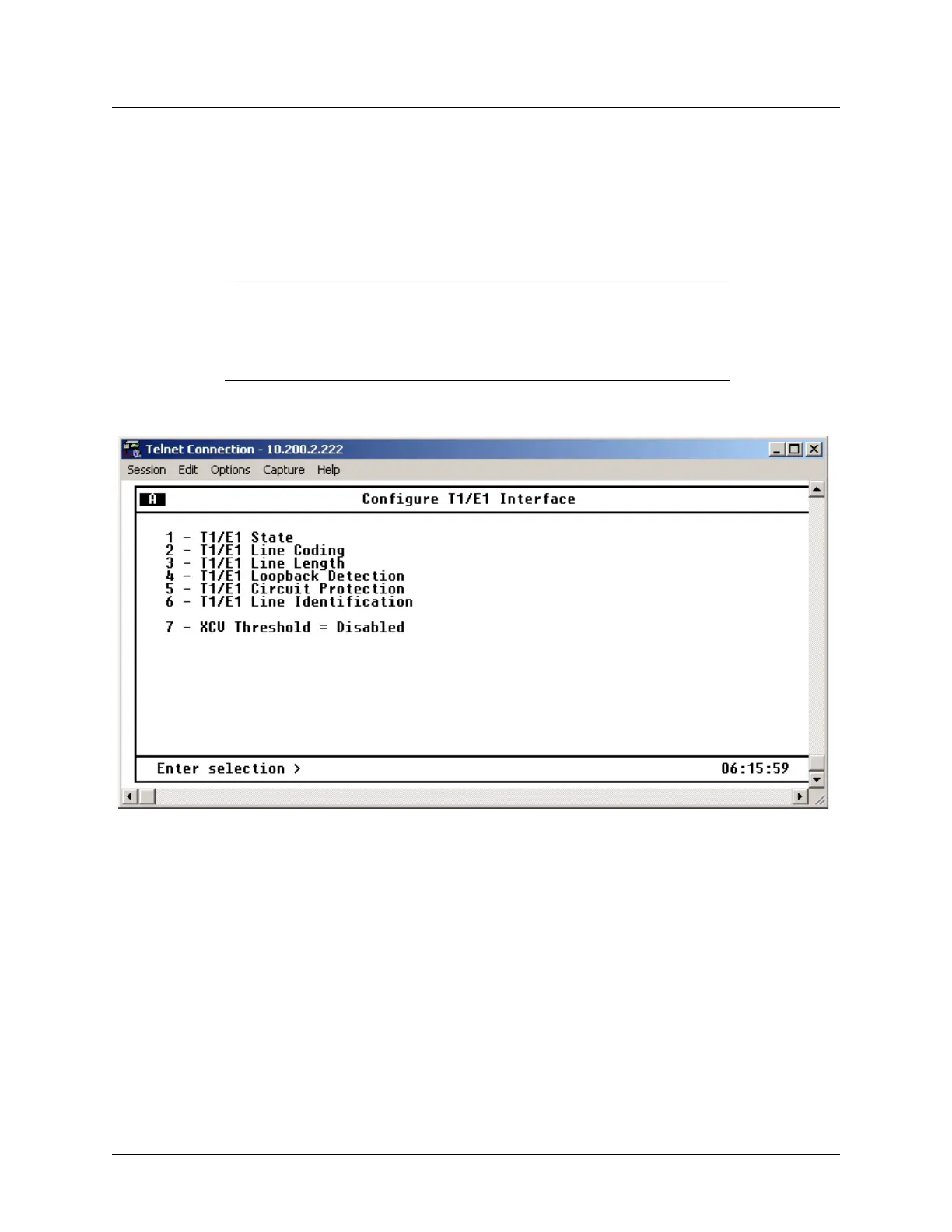

Figure 3-4. T1/E1 Interface Menu
