MX2800 M13 Multiplexer User Manual Configuration, Section 3
61200290L1-1G 3-11

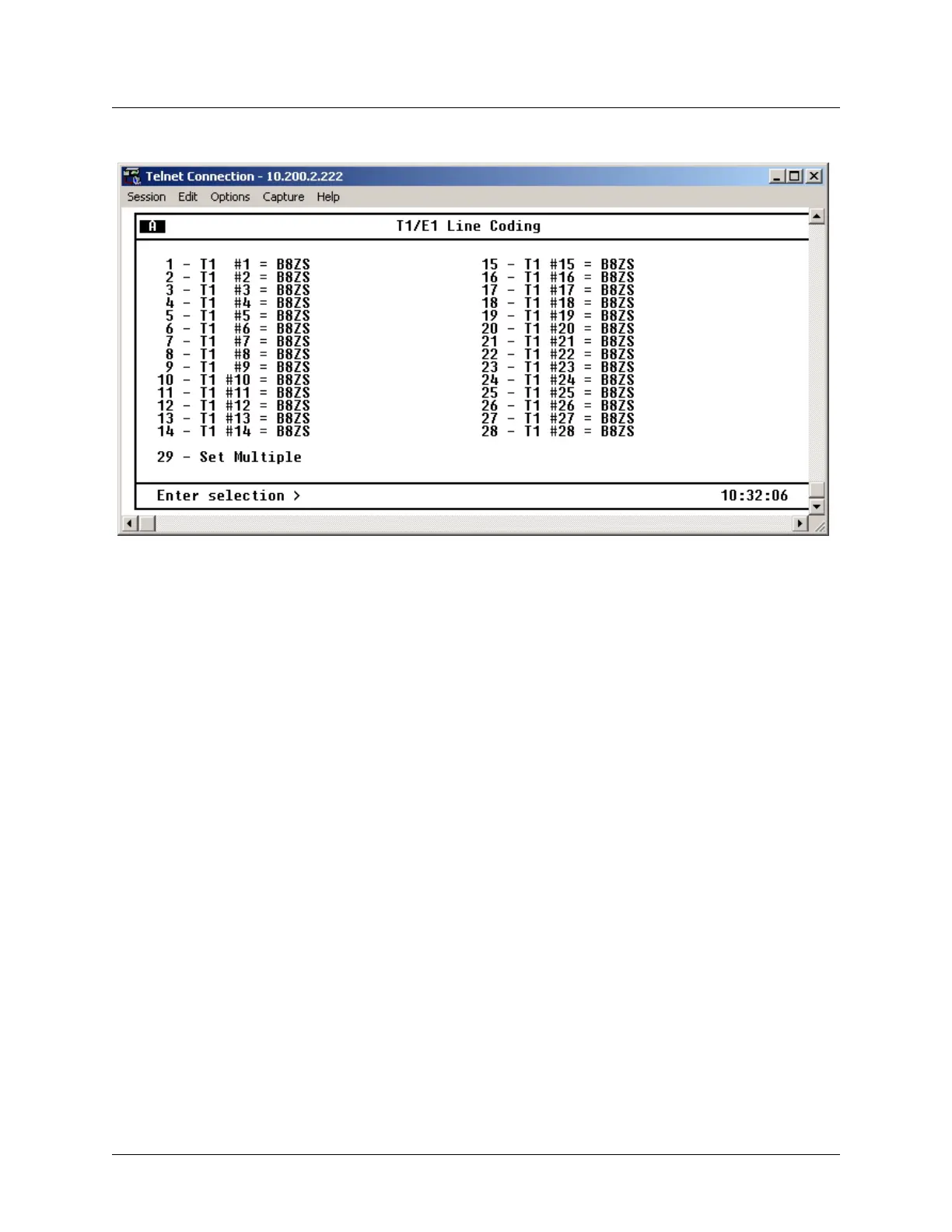

Figure 3-7. T1/E1 Line Coding Menu
T1/E1 Line Length
Set the line length for each T1 interface according to the distance from the MX2800 to the connecting DSX
termination. See Figure 3-8 on page 3-12. The E1 Line Length is not selectable and remains at 0-6 dB
loss. Select
Set Multiple to configure the line length for a contiguous group or all of the T1s to the same
length at the same time. Refer to Set Multiple on page 3-9 for a description of the
Set Multiple option.
