OVERVIEW NetVanta 3000 Series Hardware Installation Guide
18 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
• Quality of Service (QoS) with low latency queuing (LLQ), weighted fair queuing (WFQ), class-based
weighted fair queuing, and DiffServ marking
• Built-in alert and logging mechanisms
• Network Address Translation (NAT/NAPT), 1:1 NAT port translation, and NAT Traversal version 2
• NAT-compliant SIP ALG
• DHCP client, server, and relay
• XAUTH including RADIUS, RSA SecurID, and TACACS+
• Flash memory supports dual images of AOS
• Remotely configurable and field upgradeable using TFTP or FTP
• Telnet, HTTP, SSH, or SNMP management options
• 1.63-inch H x 9.00-inch W x 6.38-inch D
• DC power (12 VDC, 800 mA, 7.5 W)
NetVanta 3120 Shipping Contents
Each NetVanta 3120 unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in
transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to Repair
and Return on page 9).
Shipments of the NetVanta 3120 include the following items:
• NetVanta 3120 Base Unit
• ADTRAN OS System Documentation CD
•Quick Start Guide
• Warranty card
• External 12 VDC power supply
• Two 7-foot CAT5E cables
NetVanta 3120 Front Panel Design
The NetVanta 3120 front panel is shown below. Front panel LED descriptions are given in Table 1 on page 42.

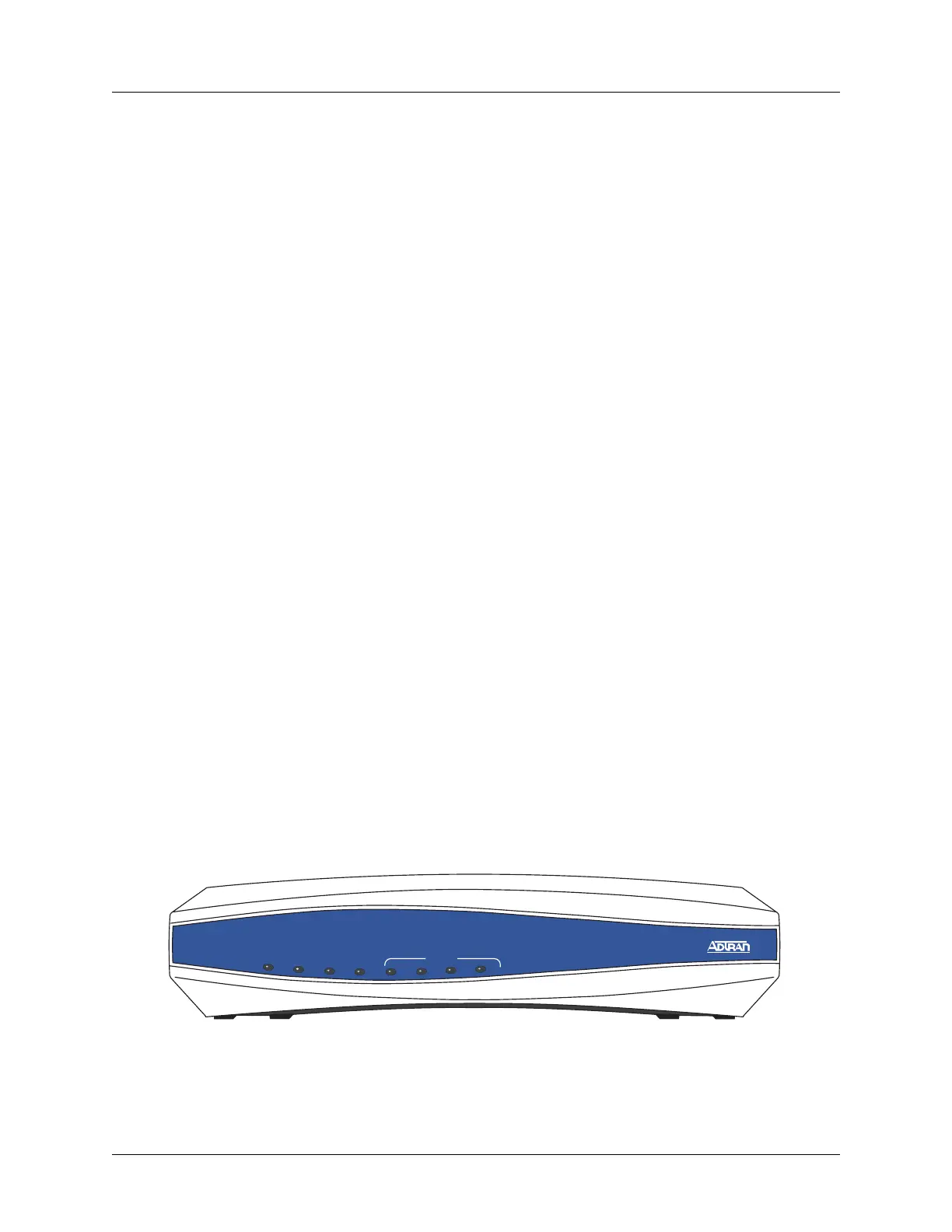

Figure 1. NetVanta 3120 Front Panel Layout
STAT
ETH1
VPN
DBU
1
2
SWITCH
NetVanta 3120
3
4
