Unit Installation NetVanta 3000 Series Hardware Installation Guide
64 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
Wall Mounting NetVanta 3000 Series
NetVanta 3120, NetVanta 3130, and NetVanta 3200

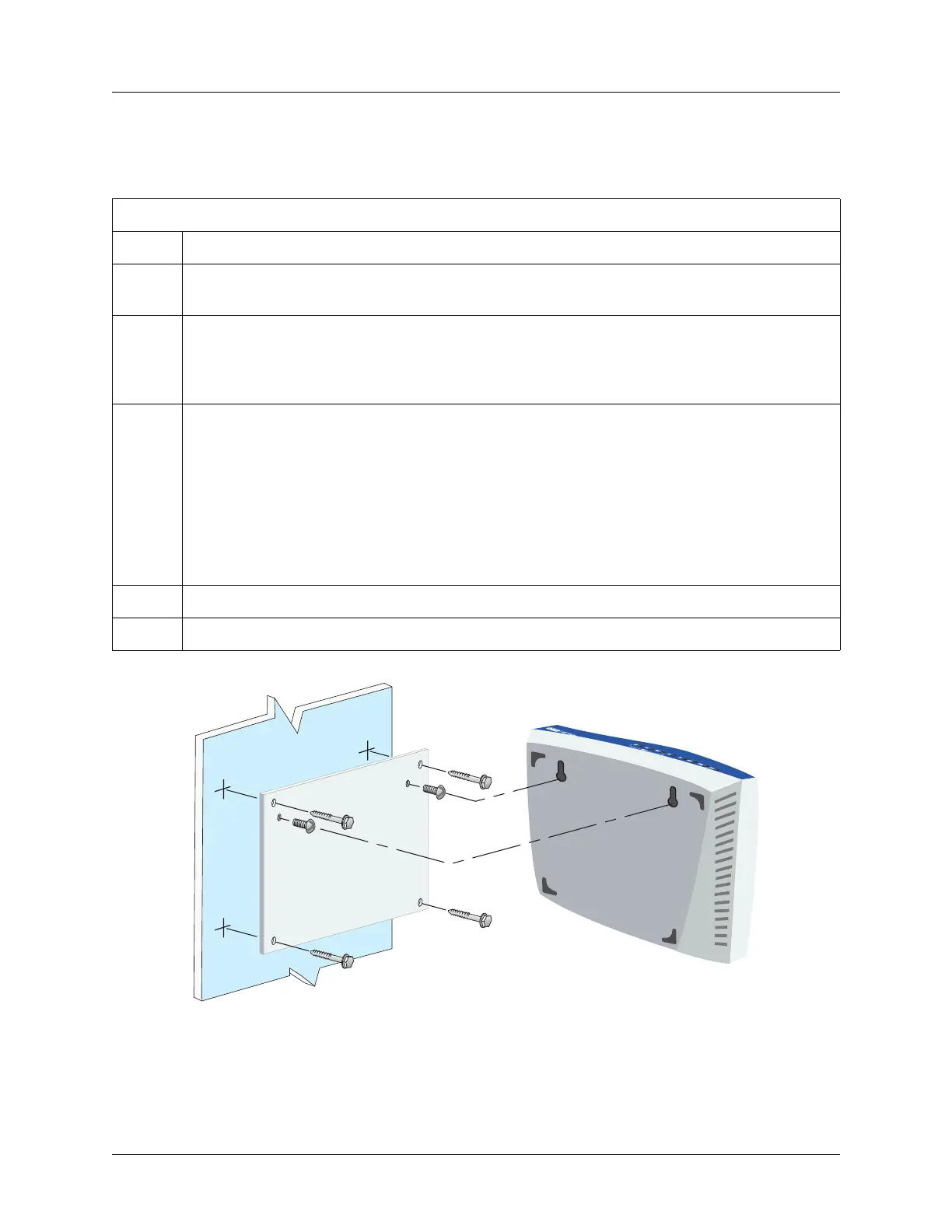

Figure 27. Wall Mounting the NetVanta 3120/3130/3200
Instructions for Wall Mounting NetVanta 3120/NetVanta 3130/NetVanta 3200
Step Action
1 Decide on a location for the unit. Keep in mind that the unit needs to be mounted at or below
eye level so that the LEDs are viewable.
2 Prepare the mounting surface by attaching a board (typically plywood, 3/ 4-inch to 1-inch thick)
to a wall stud.
Important! Mounting to a stud ensures stability. Using sheetrock anchors may not provide
sufficient long-term stability.
3 Install two #8 PAN headscrews (1 1/ 2-inch or greater in length) wood screws into the mounted
board, following these guidelines and referring to Figure 27.
• Screws should be spaced horizontally, approximately 5 inches apart. Find exact positioning
by using the location of the two keyed insets on the bottom of the unit as a guide. A mounting
template that can be used as a guide is provided on the ADTRAN OS System
Documentation CD
.
• Screws should be horizontally level with each other.
• Leave approximately 1/4-inch of the screws protruding from the board to allow the heads of
the screws to slide into place in the unit’s keyed insets.
4 Slide the keyed insets on the bottom of the unit’s chassis securely onto the screws.
5 Proceed to the steps given in Supplying Power to the Unit on page 66.
