NetVanta 3200 Front Panel Design
The NetVanta 3200 front panel is shown below. Front panel LED descriptions are given in Table 1 on page 42.

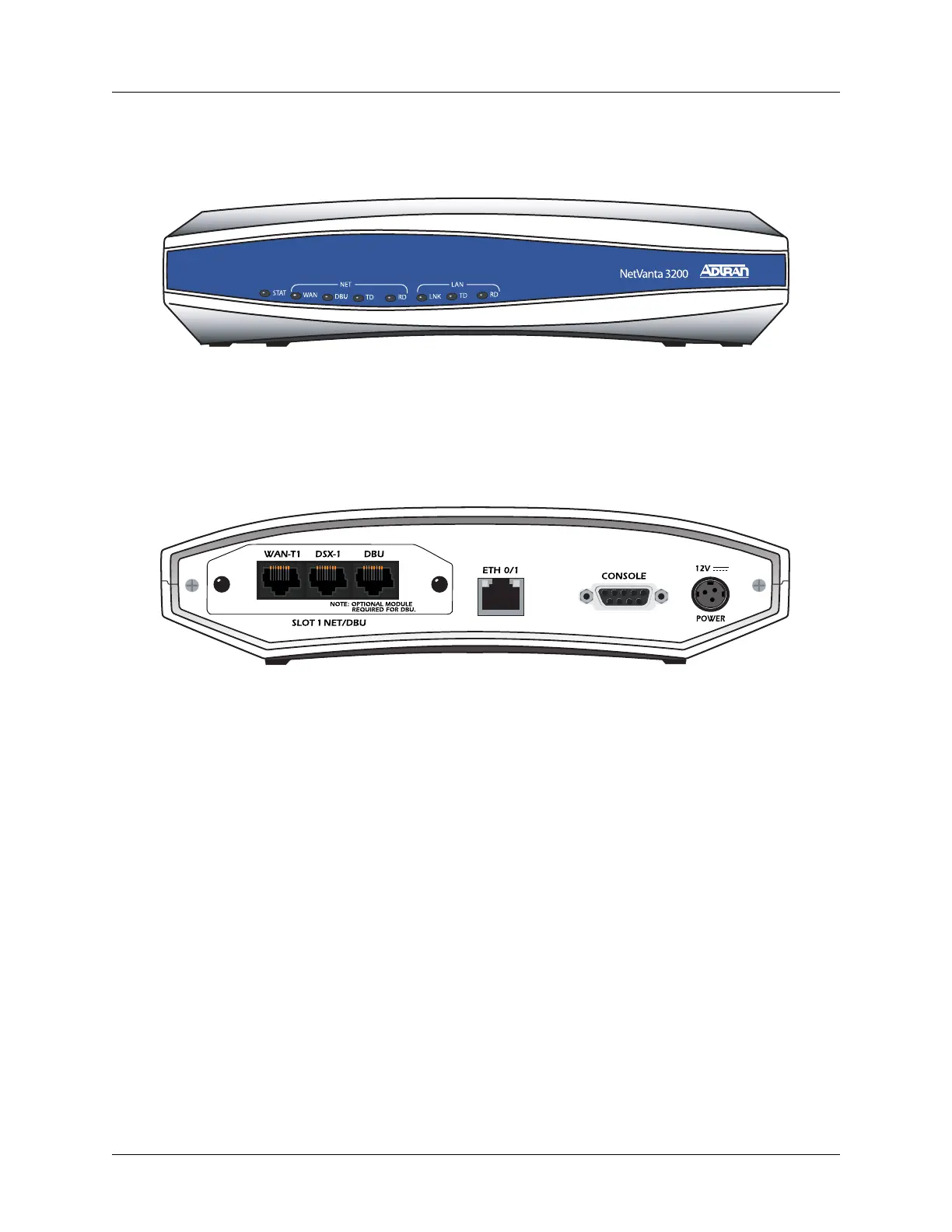

Figure 5. NetVanta 3200 Front Panel Layout
NetVanta 3200 Rear Panel Design
The NetVanta 3200 rear panel is shown below. Appendix A, on page 75, provides pinouts.
Figure 6. NetVanta 3200 Rear Panel Layout
NetVanta 3200 Rear Panel Interfaces and LEDs
SLOT 1 NET/DBU Option Slot
The SLOT 1 NET/DBU option slot supports various plug-in Network Interface Modules (NIMs). These
option modules are described in the section Option Modules on page 43.
10/100BaseT Ethernet Interface and Activity LEDs
The Ethernet port (ETH 0/1) is an RJ-45 connector with LEDs. The amber activity LED flashes when
data traffic is being sent or received on the Ethernet port. The green link LED is on when the router has
a good connection to the LAN. The Ethernet port provides the following:
• 10BaseT or 100BaseT with a single connector
• Auto-negotiation
•CSMA/CD
• IEEE 802.3 compatibility
