ADTRAN NetVanta 3000 Series Hardware Installation Guide

NetVanta 3000 Series Hardware Installation Guide Option Modules
61200860L1-34L Copyright © 2006 ADTRAN, Inc. 51
NetVanta Dual T1 NIM (P/N 1200872L1)
The NetVanta Dual T1 NIM (see Figure 20) provides two WAN T1 interfaces for the NetVanta 3000
Series. The module provides up to 2.048 Mbps on each network interface. See Table A-7 on page 77 for
the pinouts. See Table A-14 on page 80 for the DBU connector pinouts. An optional DIM is required for
dial backup applications.

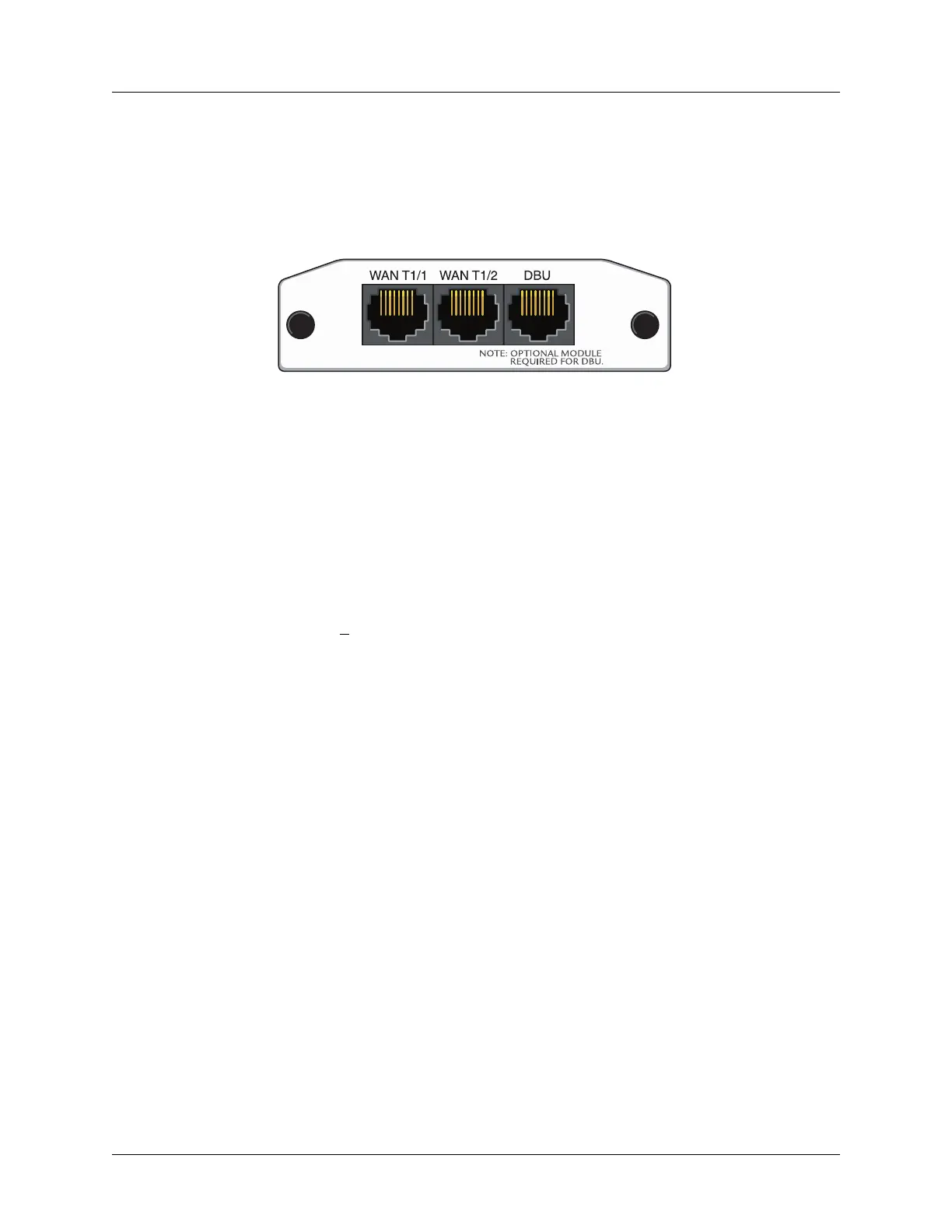

Figure 20. NetVanta Dual T1 NIM
Features and Specifications
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps +
75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized
(multiples of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
•Network
•Internal
• Through
Diagnostics
• Test Pattern Generation and Detection:
QRSS, 511, 2
15
- 1, 2
20
- 1, all ones,
all zeros
• Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
• Alarm generation detection
• Network performance data (15 minutes
and 24 hours)
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 7.
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
