Chapter 2 Product Information
2.1 Designation Rules
CM530 A 4T 4R0 G B / 5R5 P B
Inverter Series
Voltage Level
2S:Single Phase 110V
3S:Single Phase 220V
3T:Three Phase 220V
4T:Three Phase 380V
7T:Three Phase 690V
……
Design edition A
Design edition B
Design edition C
……
Model
Adaptable Motor Power
Mark： R75 1R5 …… 011 015
Motor PowerKW）0.75 1.5 …… 11 15
Brake Unit
B:Including Brake Unit
NULL:None
G:Gerneral Type
P:Fan Pump Type

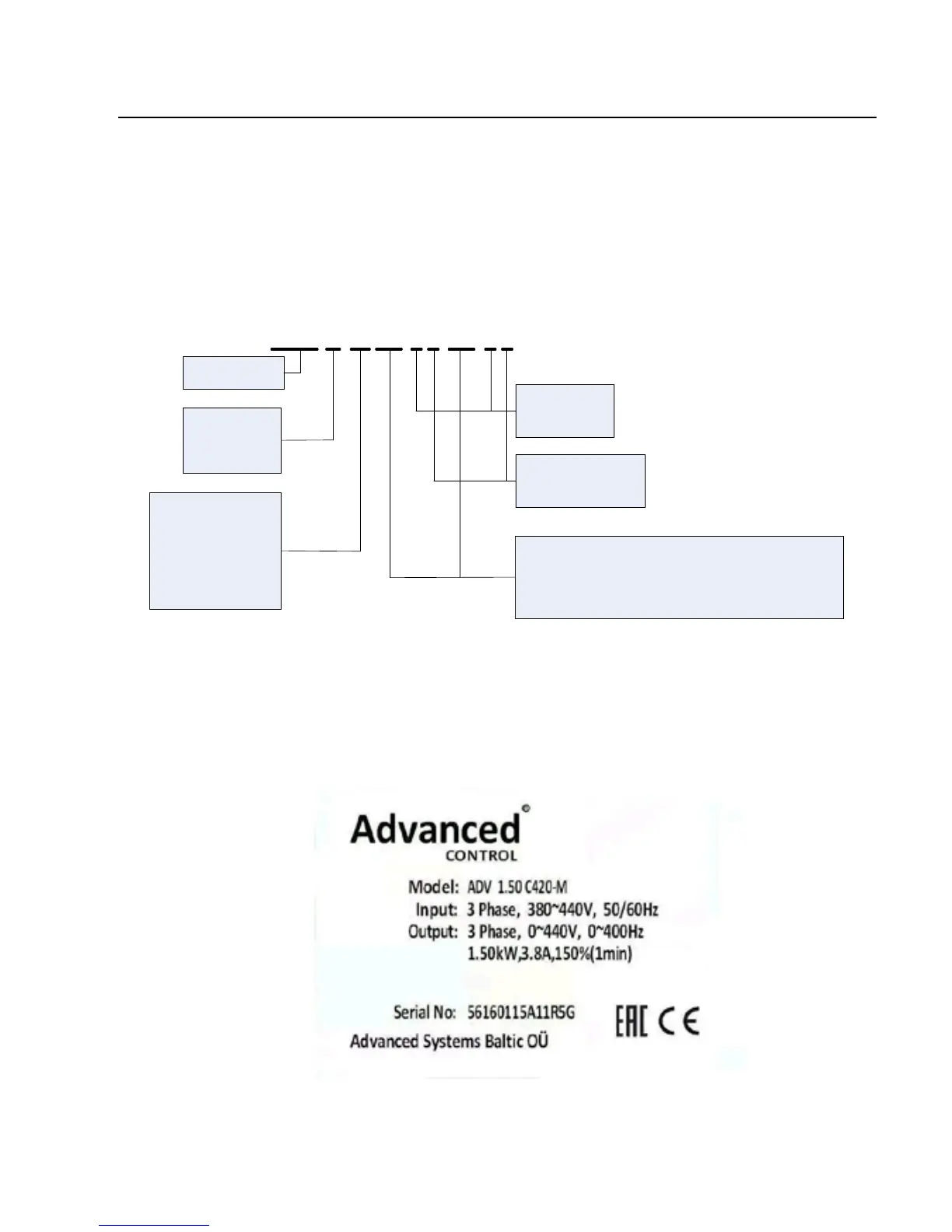

Fig.2-1
2.2 Nameplate
Fig.2-2 Nameplate
