Advanced Control C220 Series - Chapter 4 Operation and Display

Operation and Display
C220/C420 General Flux Vector Control Inverter User Manual
44
Chapter 4 Operation and Display
4.1 Introduction to Operation and Display Interface
Function parameter modification, inverter working status monitoring and inverter
running control(start/stop) can be changed on operation panel. Refer to outline and
function as shown in Table 4-1

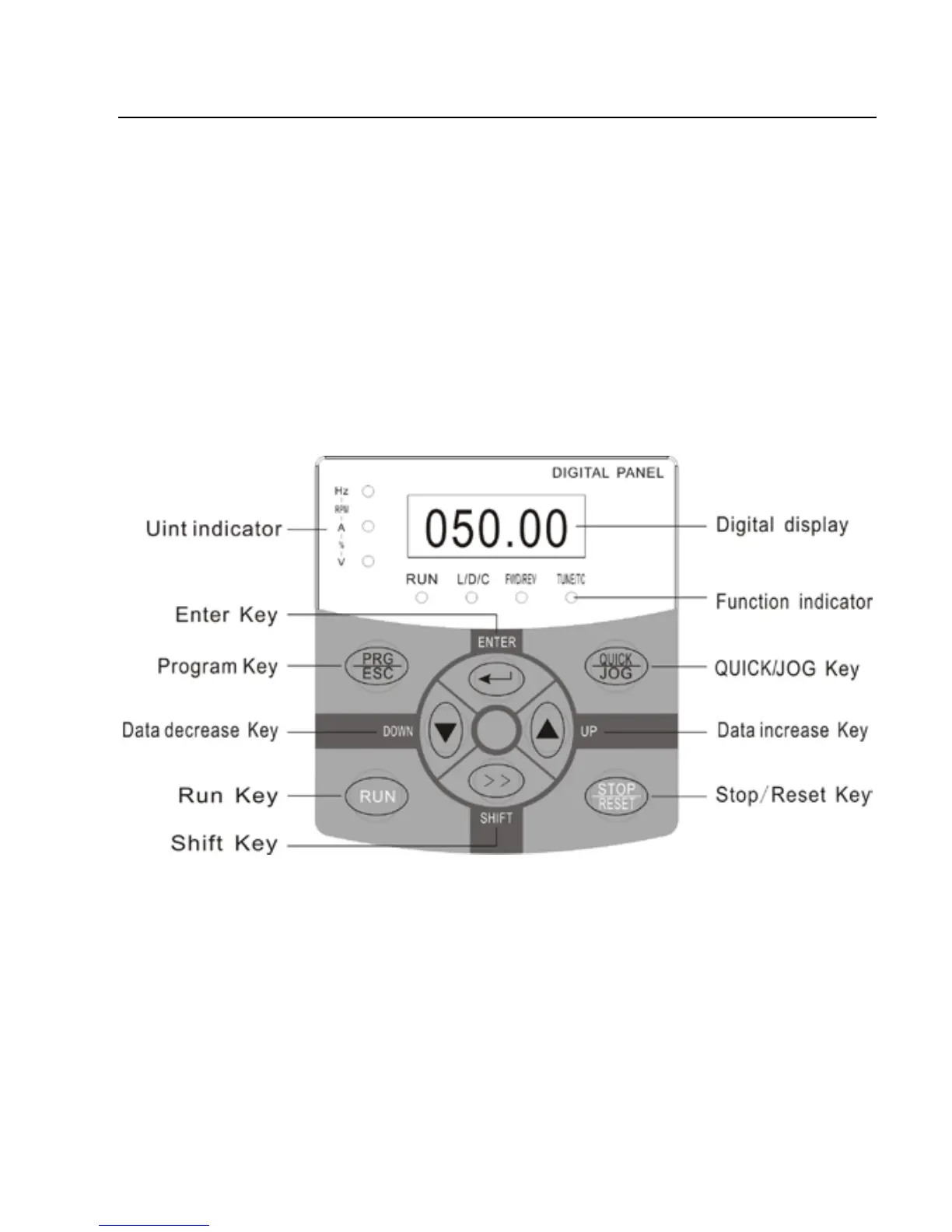

Fig.4-1 C420
