2.5.2 Mounting Hole Dimensions

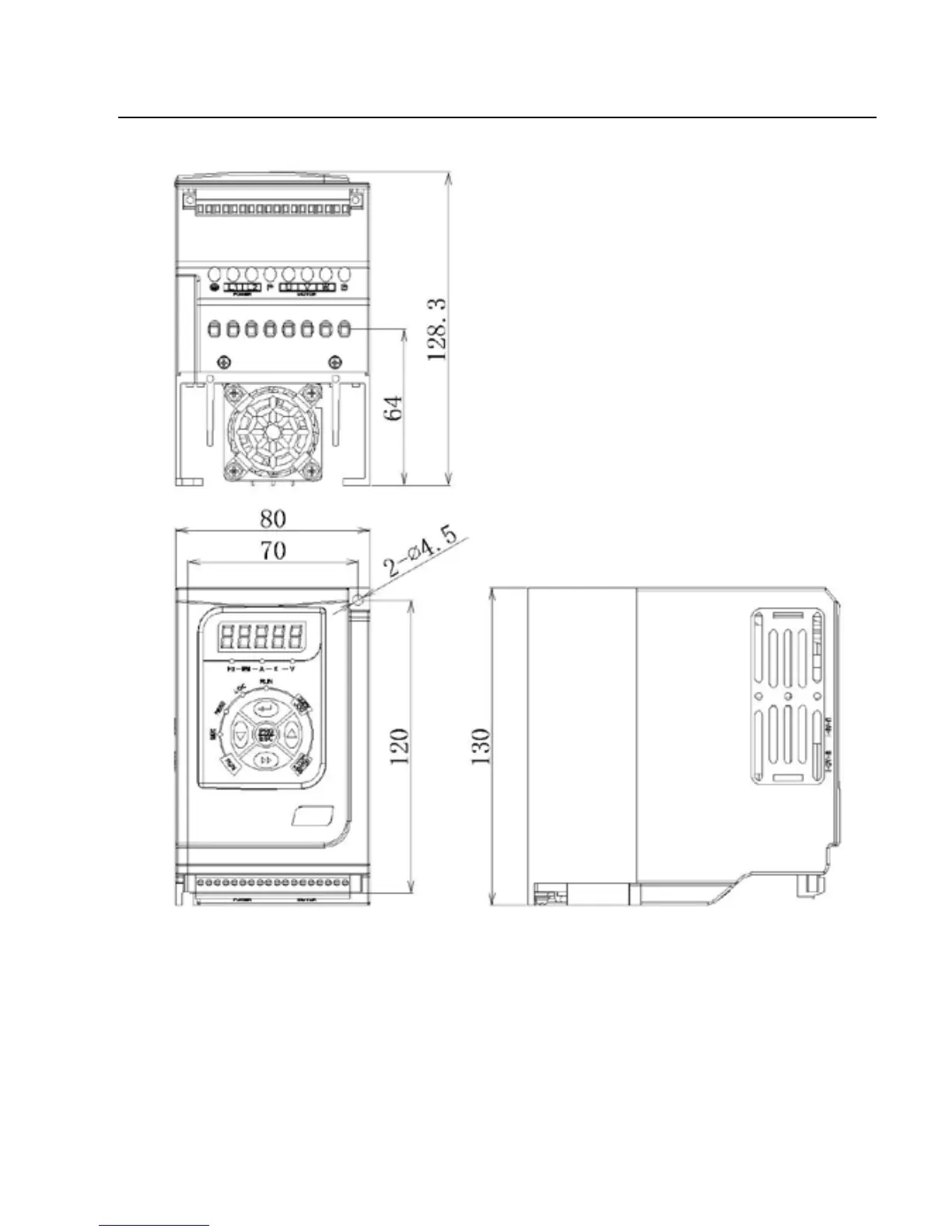

Fig.2-4 Schematic Diagram for Physical Dimensions and Mounting Dimensions
2.5.3 Mounting Hole Dimensions2：
