Operation and Display
C220/C420 General Flux Vector Control Inverter User Manual
46

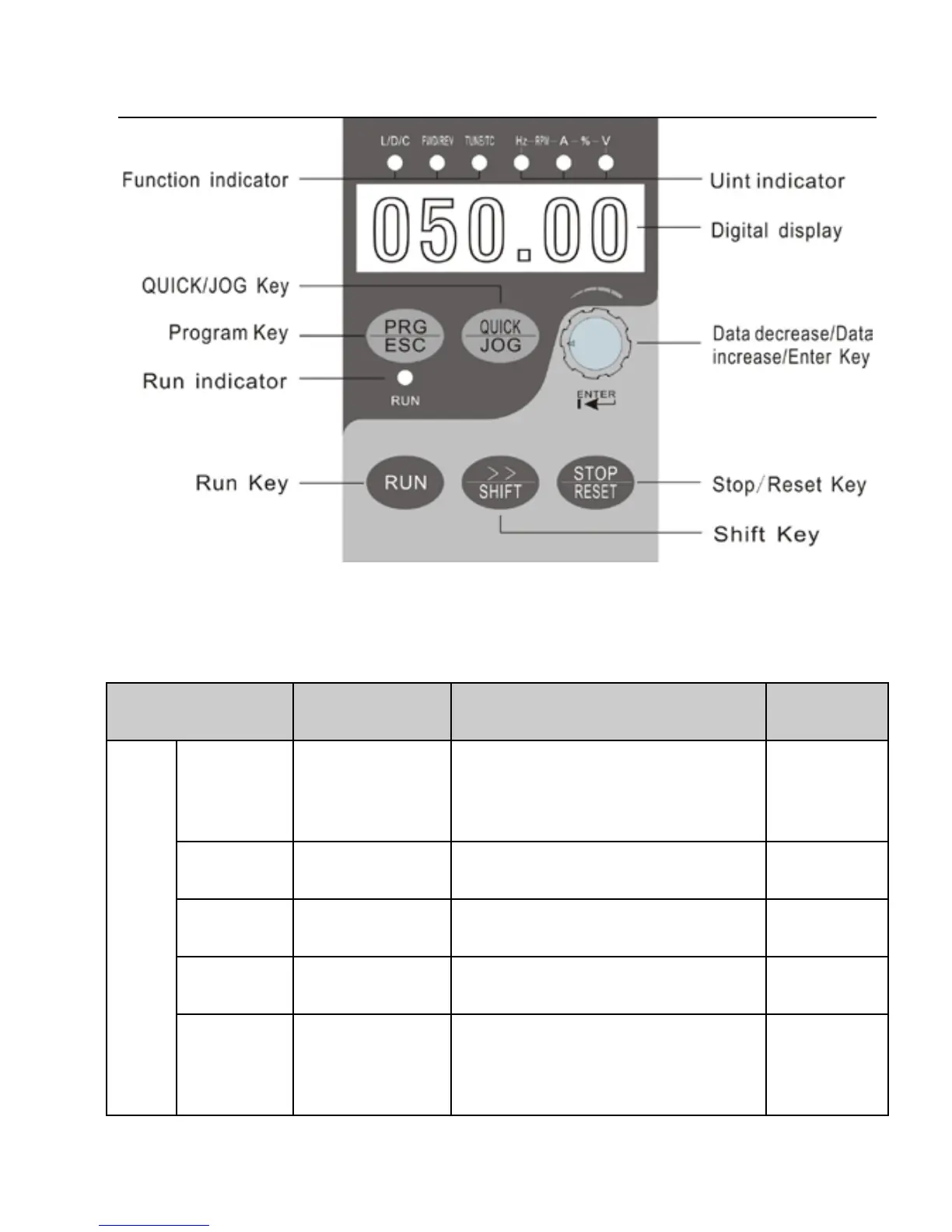

Fig.4-3 C220/C420-LED
4.1.1 Description of Function LED Indicator
LED Symbol Unit Implication Colour
Unit LED
Hz Freq.Unit LED on——indicates
frequency
Green
A Current Unit LED on——indicates current Green
V Voltage Unit LED on——indicates voltage Green
RPM Speed Unit LED on ——indicates speed Green
% Percent LED on——indicates
percentage values
Green
