Parameter Description
C220/C420G General Flux Vector Control Inverter User Manual
mainly aimed at axia’s application ,adjustment method;
1. motor comes to maximum frequency
2. checking the output
3. adjusting the parameters F3-10 so that output voltage comes to motor rated
voltage
4. The larger value, the bigger output voltage
100%
90%
F4-05
Frequency
Torque
F3-10

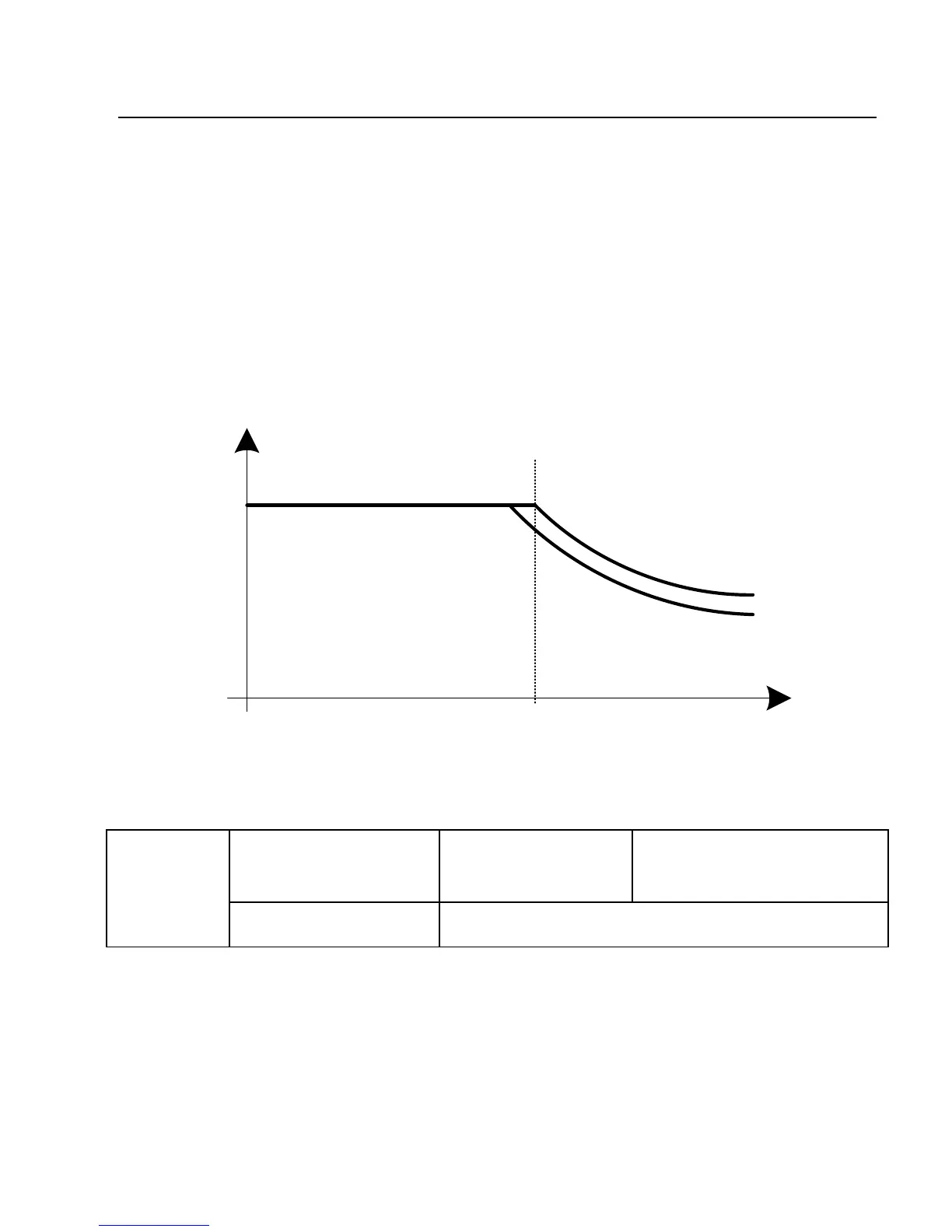

Fig.5-6 Weak magnetic gain curve Schematic diagram
F3-15
1～65535(0.0001kg*m^2)
This parameter which is for motor load inertia needs to set an appropriate value
before the motor runs,can cause the system unstable because of its value is too big or
too small,at this time it can adjust the speed loop proportional gain and integration
time to increase the system performance
