Handlebars
f Adjust the headset bearing as follows.
f Tighten the top screw of the handlebar stem in
minimal steps (about ⅛ turn clockwise per step).
f Check fixation/adjustment of the headset bearing as
follows.
f Keep the handbrake for the front wheel
depressed while trying to push the e-bike back
and forth: The headset bearing must be fixed and
must not have any play.
f Lift the e-bike by the frame and tilt the frame to
one side: The front wheel must be movable in this
position and move to the left or right by itself.
f Align the handlebars at a 90° angle to the front wheel.
f To fix the handlebar direction, turn stem clamp screws
tightly (clockwise).
f Observe torques.
f Replace the cover cap on the top of the handlebar
stem.
6 1 2
3
4
5

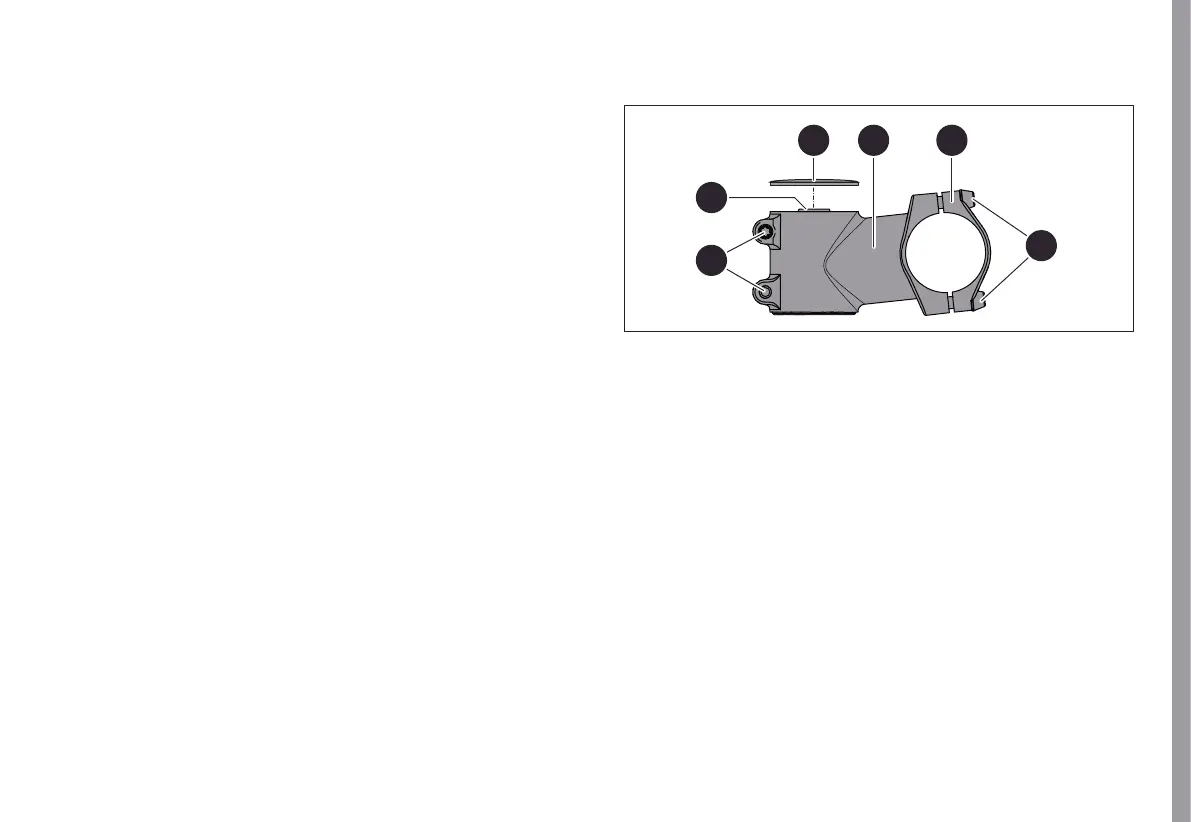

Abb.: 21 Adjusting the handlebar direction and headset bearing
1. Handlebar stem
2. Headset bearing
3. Handlebar clamp with
screws
4. Shank clamping with screws
5. Screw
(headset bearing adjustment)
6. Cover cap
