97 ADAM-6200 User Manual
Chapter 4 System Configuration
Output Stage

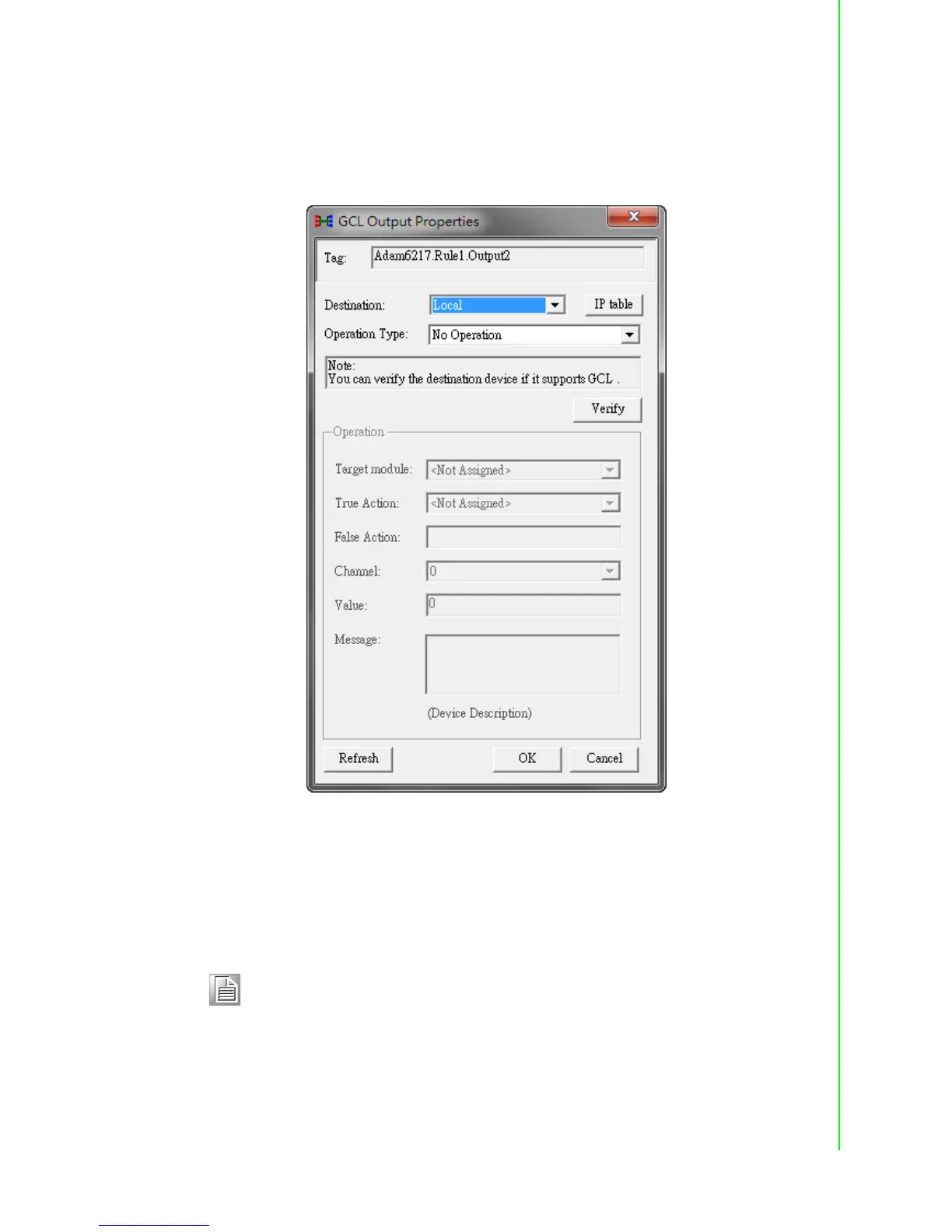

When you click the Output stage icon, you will see a pop-up window as below. There
are three outputs for one logic rule. The logic result value from the Execution stage
will be passed to the three outputs. And the three outputs will have different action
depend on the logic result value.
You need to decide the target device for the output by the Destination combo box.
You can choose Local, meaning the output is on the same module, or another remote
module by its IP address. Select the appropriate IP address listed in the combo box.
The IP addresses are defined in the IP table and you can click the IP Table button to
configure. (The action of clicking the IP Table button here is just the same as click the
IP Table Configuration button in the GCL Menu area.)
Note! When your output destination is not Local, meaning there will be com-
munication between the specific ADAM-6200 module to its target
device, remember to use Ethernet switch to connect the ADAM-6200
module with its target device. Do not use an Ethernet hub. This can pre-
vent data packet collision.
