65 ADAM-6200 User Manual
Chapter 4 System Configuration

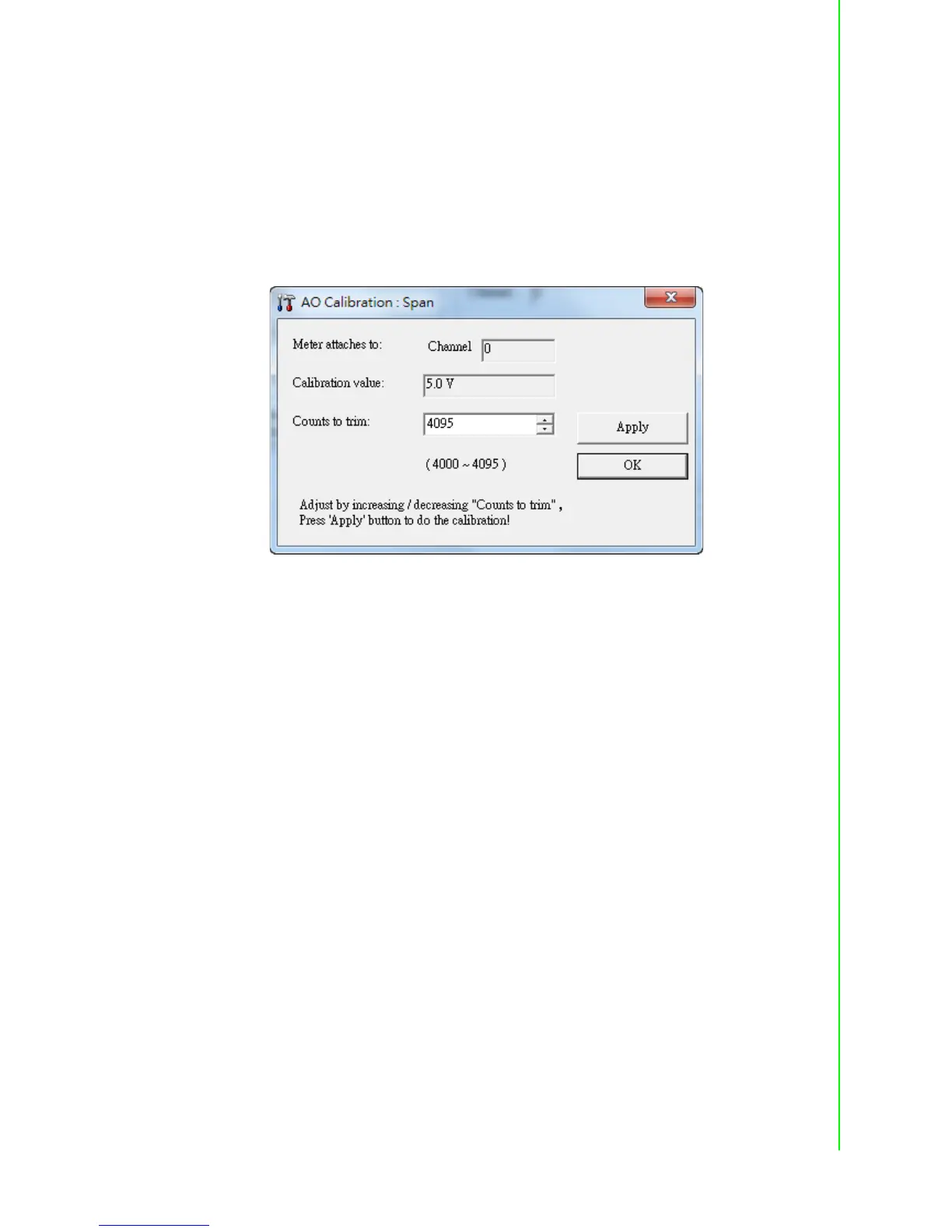

2. Trim Span - It's used to help user calibrate the high limit of output range by
entering the value.
Step 1. Click the Trim Span button after enabled Allow Calibration.
Step 2. The output signal will be delivered as the highest level, for example, if
you select +/- 10V range, you will get around 10V.
Step 3. Please check if the voltage/current meter connected to the module is
right to the highest level. If not, please adjust "Counts to trim" to correct the out-
put value indicated on the meter. After calibrating to correct value, please click
Apply button to take it effect.
Step 4. Click OK button to finish the process.
Slew Rate
It defines how long the AO value changes according to the type of output range.
Set Value
You can set value by scrolling the meter bar.
Safety function
You can define the safety value after it's enabled.
Channel Information
The information including address, type, channel, value [Decimal], value [Hexadeci-
mal], value [Engineering], output range, startup value, safety value, and slew rate will
show on the screen.
