71 ADAM-6200 User Manual
Chapter 4 System Configuration

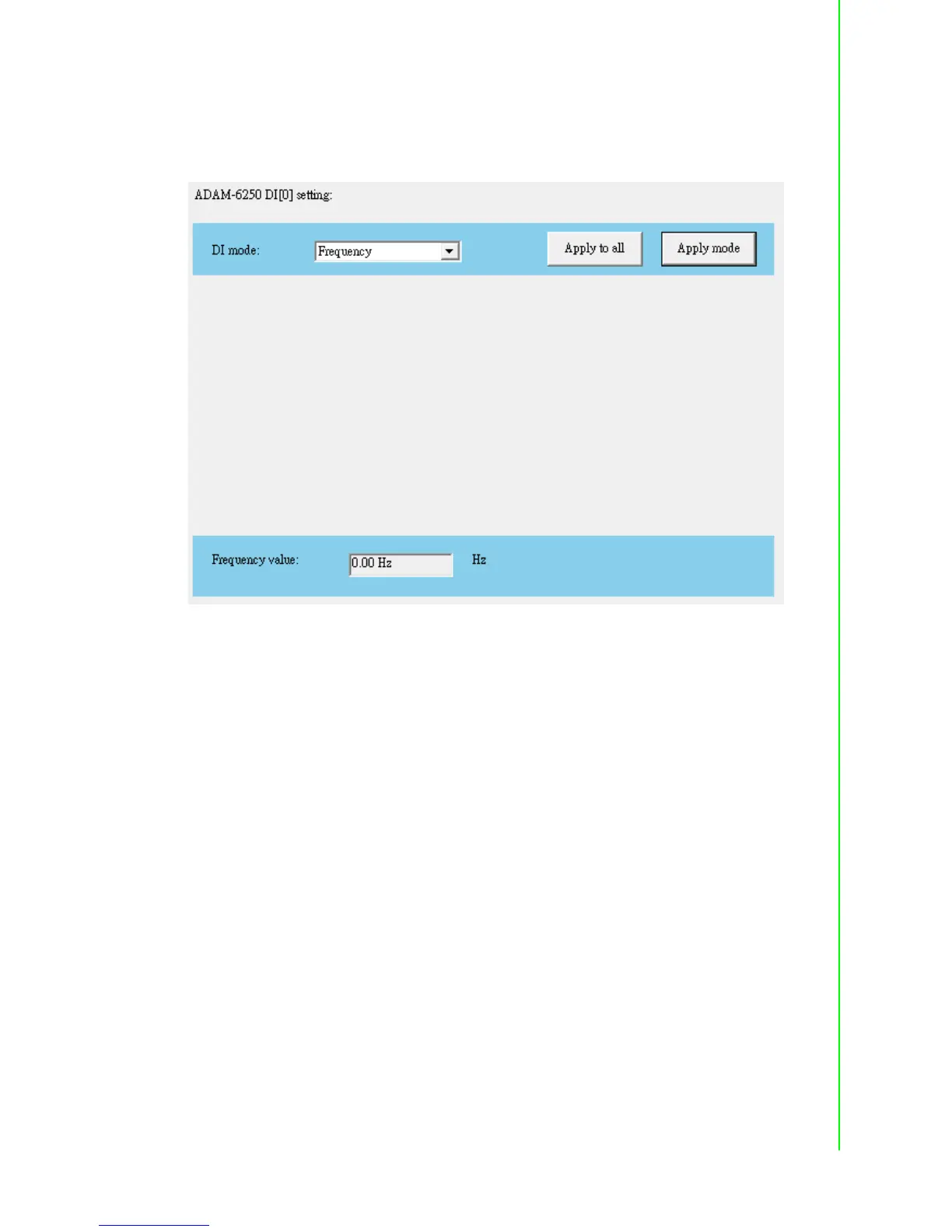

Frequency mode
When you choose Frequency mode, ADAM-6200 digital module will calculate the fre-
quency value of the digital input signal from the selected channel and the frequency
value will be displayed by the Frequency value text box.
5. DO configuration
In ADAM-6250 advanced channel setting, you can configure the details of output sig-
nal such as signal width, frequency, duty cycle based on different DO mode and
meanwhile, you also can check DO status of each channel.
There are four kinds of DO mode including DO, Pulse out, Low to high delay, and
High to low delay.
