Rule 3.

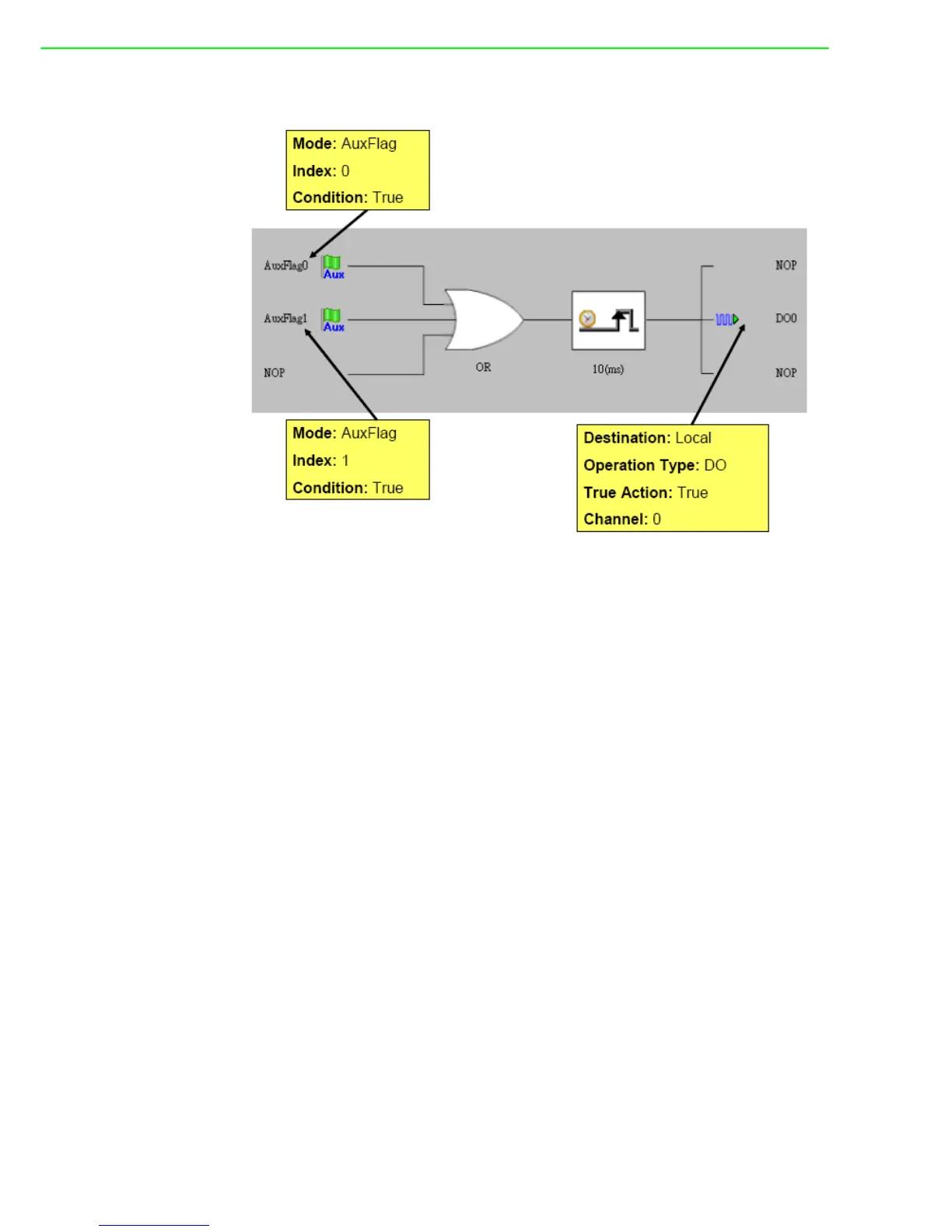

We use the logic rule 1 to check if AI channel 0 value of the ADAM-6217 is within 3 ~
5 Volt. Logic rule 2 is used to check if AI channel 1 value is within 3 ~ 5 Volt. The
comparison result of logic rule 1 and 2 is assigned to internal flag 0 and 1. The logic
rule 3 read the value of these two internal flags and use the OR logic operation to
define the output of digital output channel 0. You can find that we have built the logic
architecture as shown by the internal flag.
