Chapter 4 System Configuration
4.3.3.7 ADAM-6266
Digital Output Channel Overview
Locate
It can help user search ADAM module with light sign. (Status LED will be on for 10
sec when it enabled.)

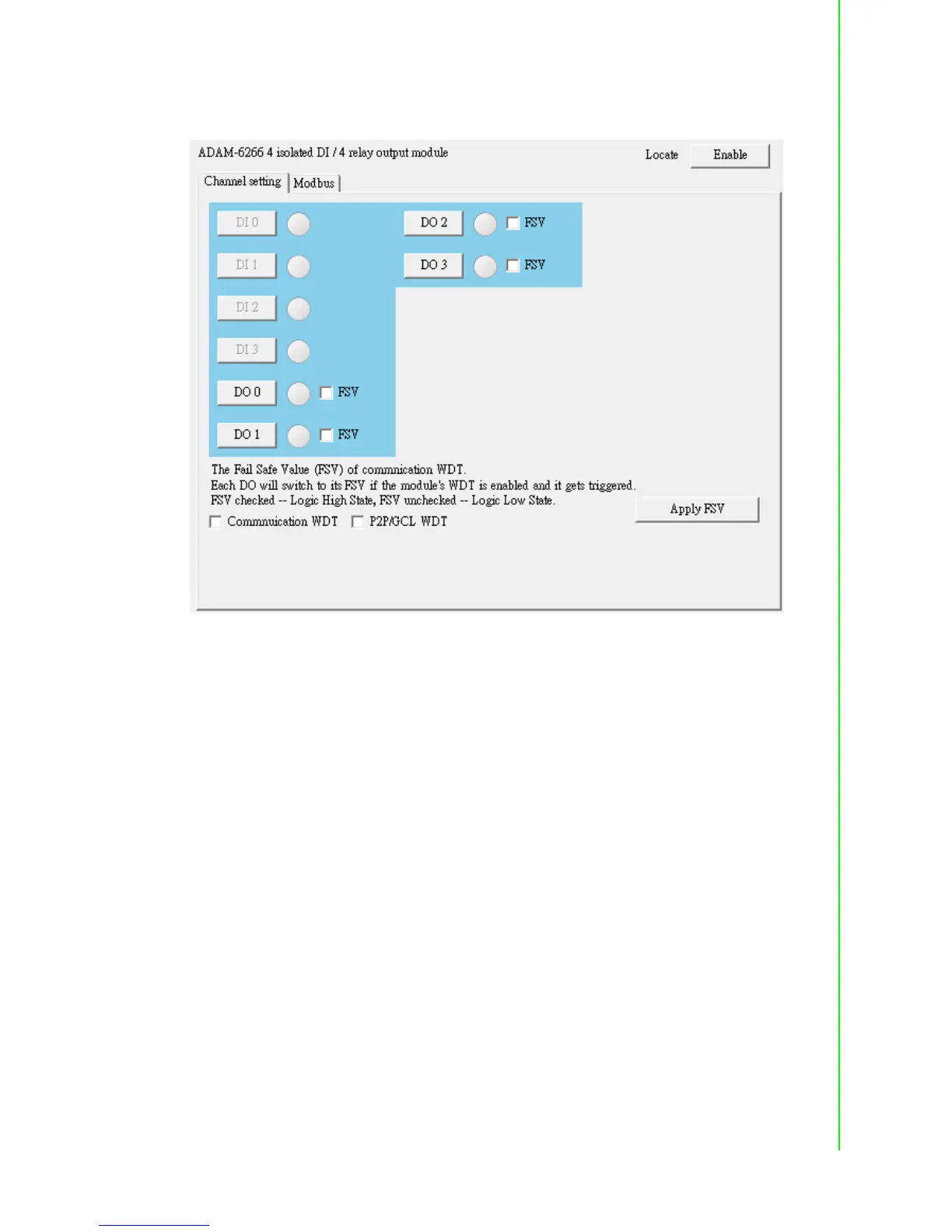

Channel Setting
You can see value of all digital input channels by related LED display in this tab.
Besides, you also can control values of all digital output channels by related button.
The LED next to the button will display current value of that digital output channel.
The Fail Safe Value (FSV) of communication WDT
If FSV checkbox is enabled, it presents the module will set the output channel to logic
high when WDT timeout. There are two application as below. After all, click the Apply
FSV button to take it effect.
a. Communication WDT
When the module hasn't received network packets too long, that means the
waiting time is greater than idle time you entered, the module will automatically
send the safety value to host PC if you've enabled this function.
b. P2P/GCL WDT
When the module hasn't received P2P/GCL network packets too long, that
means the waiting time is greater than idle time you entered, the module will
automatically send the safety value to host PC if you've enabled this function.
Modbus
It indicates the overview of the status (value) of its corresponding Modbus address,
channel and mode.
Advanced channel setting
Please refer to the DI/O operating statement of ADAM-6250.
