AIMB-785 User Manual 96

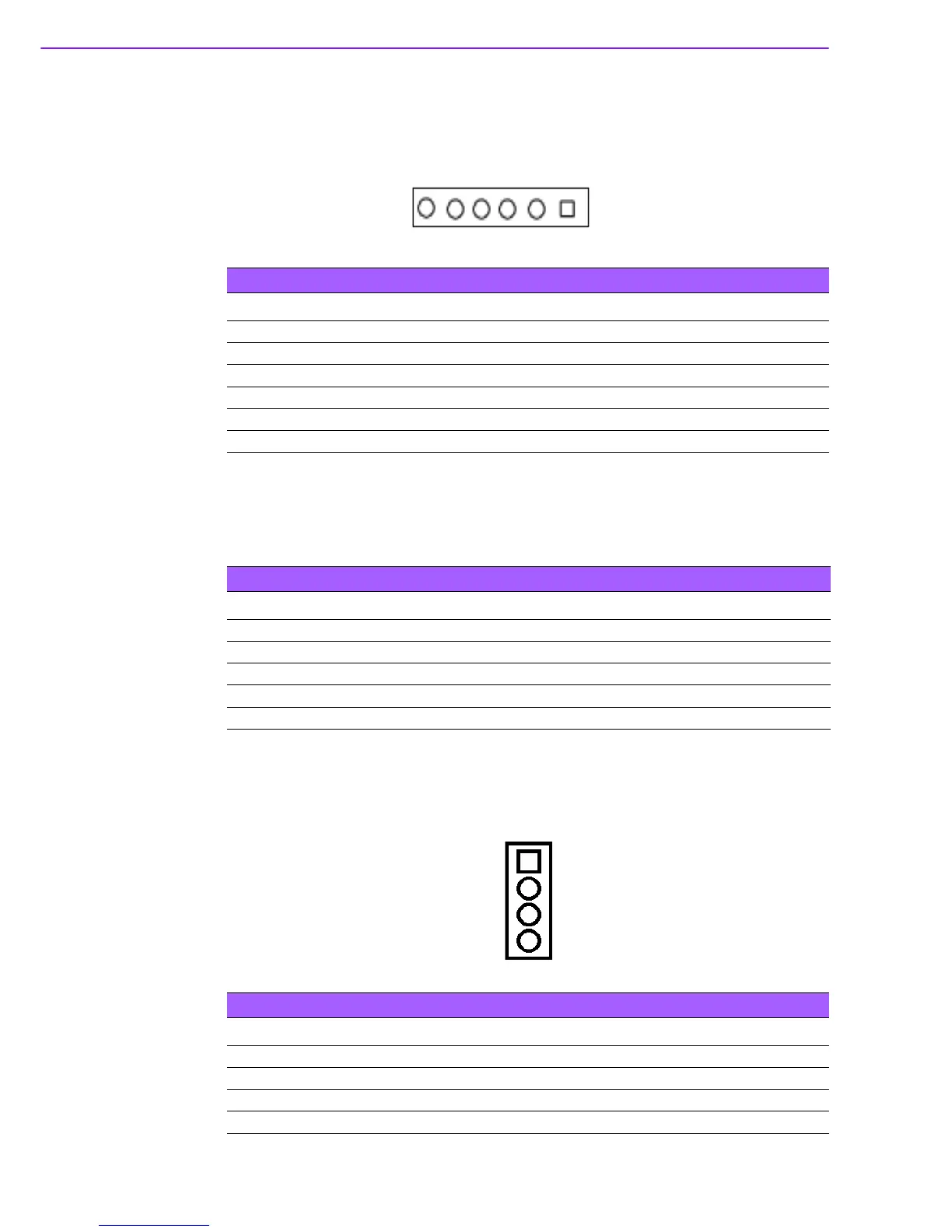

B.8 External Keyboard and Mouse Connector
(KBMS1)
B.9 Infrared (IR) connector (JIR1) and JWDT1 and
HW Monitor Alarm (JOBS1)
B.10 System Fan Power Connector (SYSFAN1/
SYSFAN2)
Table B.9: External Keyboard and Mouse Connector (KBMS2)
Pin Signal
1 KB CLK
2 KB DATA
3MS DATA
4GND
5 KB/MS +5V
6MS CLK
1
Table B.10: JIR1+JWDT1+JOBS1
Pin Signal Pin Signal
1 +5V 6 SYSTEM RESET#
2N/C7GND
3 N/C 8 ERROR_BEEP
4WG#9IR TXD
5 IR RXD 10 OBS_BEEP
Table B.11: Fan Power Connector (SYSFAN1/SYSFAN2)
Pin Signal
1GND
2 +12 V
3 SENSE
4PWM
