AIMB-785 User Manual
Chapter 3
BIOS Operation
3.2.2.1
Plat
form Misc Configuration

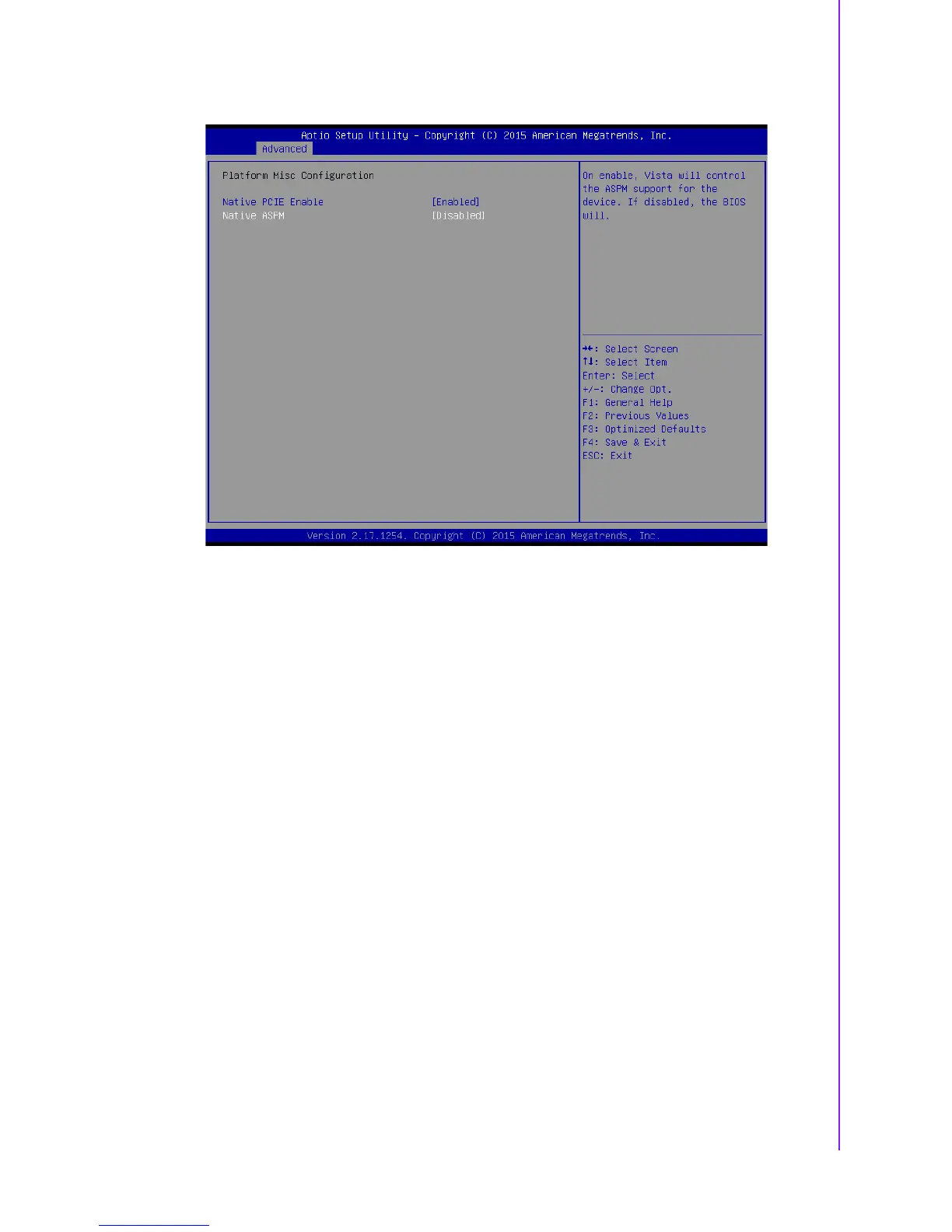

Figure 3.4 Plat
form Misc Configuration
Plat
form Misc Configuration
–
Native PCIE Enable
PCI Express Native Support Enable/Disable.
This is only available in V
ista.
–
Native ASPM
On enable, Vist
a will c
ontrol the ASPM support for the device. If disabled, the
BIOS will.
