Advantech AIMB-785 - Case Open Connector (JCASE1); Front Panel LAN LED Connector (LAN_LED1); SPI_CN1: SPI Flash Card Pin Connector

101 AIMB-785 User Manual

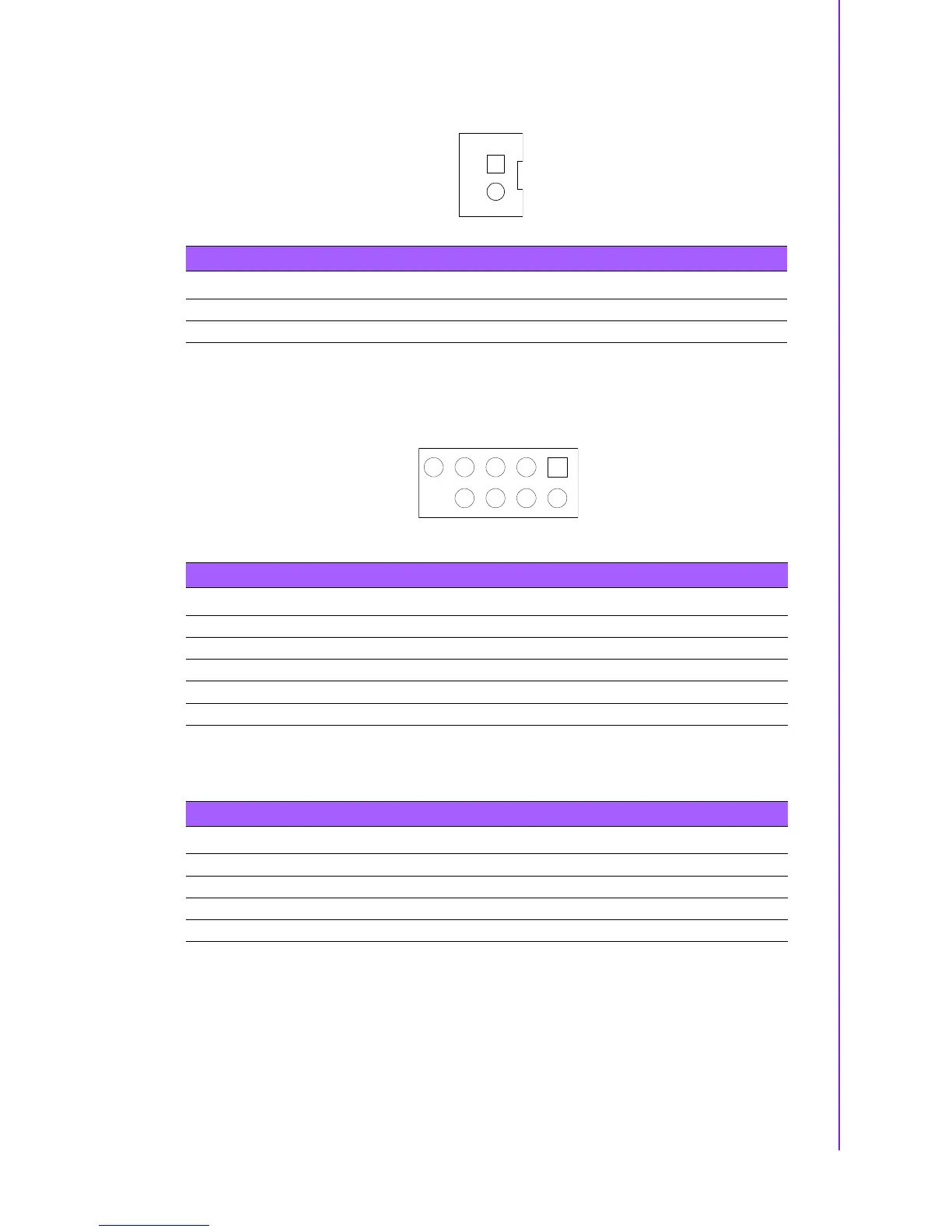

Appendix B I/O Pin Assignments
B.21 Case Open Connector (JCASE1)
B.22 Front Panel LAN LED Connector (LAN_LED1)
B.23 SPI_CN1: SPI Flash Card Pin Connector
Table B.23: Case Open Connector (JCASE1)
Pin Signal
1 CASEOP
2GND
1
Table B.24: LAN LED Connector (LANLED1)
Pin Signal Pin Signal
1 LAN_LED0_ACT# 2 LAN_LED0_ACT#
3 +3.3V 4 +3.3V
5 LAN_LED1_1G# 6 LAN_LED1_1G#
7 LAN_LED2_100M# 8 LAN_LED2_100M#
9+3.3V
9 1
8 2
Table B.25: SPI_CN1:SPI fresh card pin connector
Pin Signal Pin Signal
1 +V3.3V 2 GND
3CS# 4CLK
5MISO 6MOSI
7 N/A 8 N/C
