AIMB-785 User
Manual
40
3.2.2.6
ACPI Settings

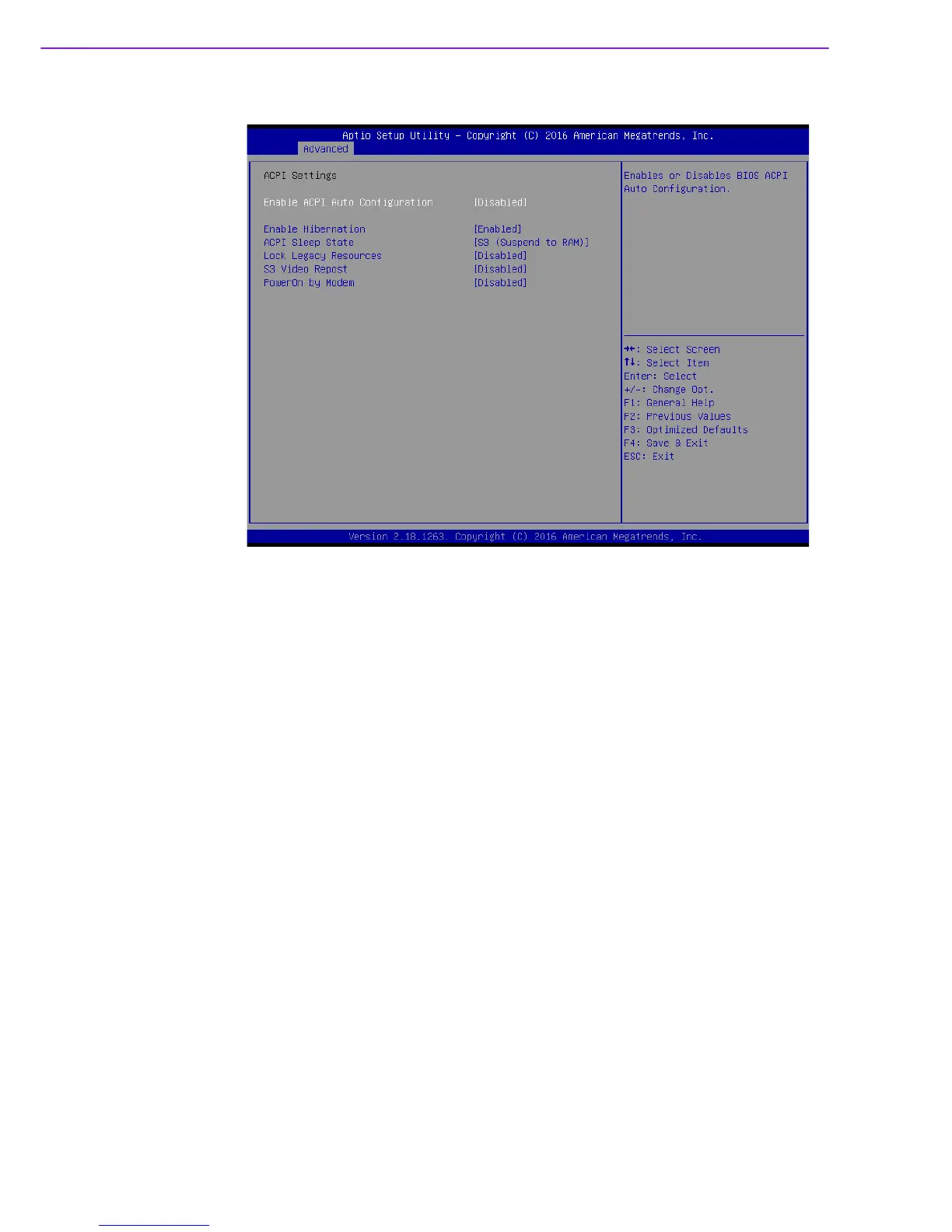

Figure 3.14 ACPI Settings
Enable Hibernation
"Enable or Disable" Hibernation (OS/S4 Sleep S
ta
te). This option may not be
applied in some OS.
ACPI Sleep St
ate
"Auto or S1 only or S3 only" ACPI Sleep S
tat
e
Lock Legacy Resources
"Enable or Disable" Lock Lega
cy Resources
S3 V
ideo Repost
"Enable or Disable" S3 V
ideo Repost
PowerOn by Modem
"Enable and Disable" PowerOn by Modem
49
51
