AIMB-785 User Manual 62
3.2.3.7 SATA Configuration

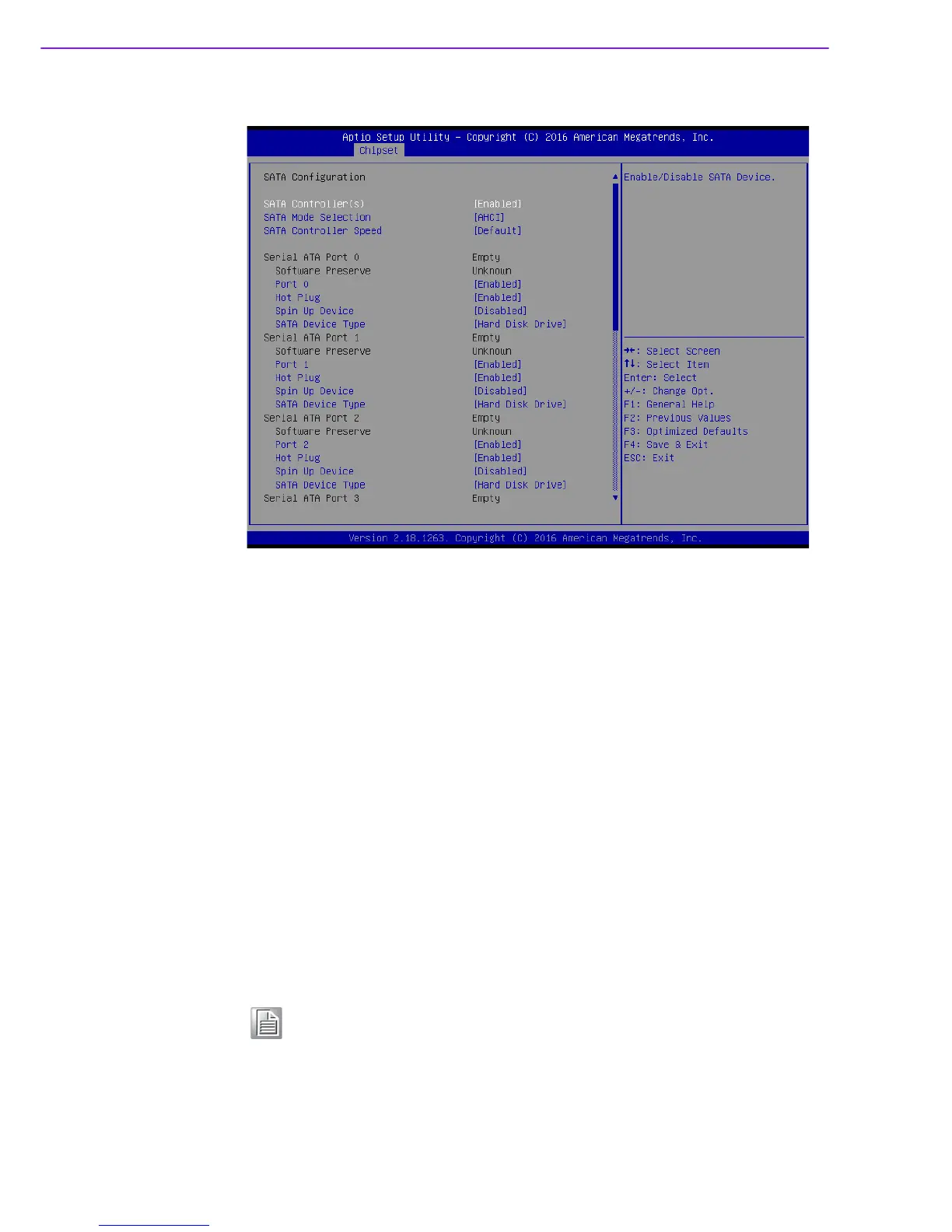

Figure 3.40 SATA Configuration
 SATA Controller(s)
"Enable or Disable" SATA Controller
 SATA Mode Selection
This can be configured as RAID or AHCI.
 SATA Controller Speed
Indicates the maximum speed the SATA controller can support by selecting
"Default, Gen1, Gen2, Gen3".
 Port 2~5
"Enable or Disable" SATA port 2~5.
 Hot Plug
"Enable or Disable" SATA Hot-Plug
 Spin up Device
"Enable or Disable" spin up device
 SATA Device Type
To identify the SATA that is connected to a Solid State or Hard Disk Drive.
Note! Serial ATA Port 0 & 1 will not be shown in BIOS because these two
ports are controlled by Marvel chip, not the Intel controller.
