Advantech AIMB-785 - Case Open Connector (JCASE1)

21 AIMB-785 User Manual
Chapter 2 Connecting Peripherals

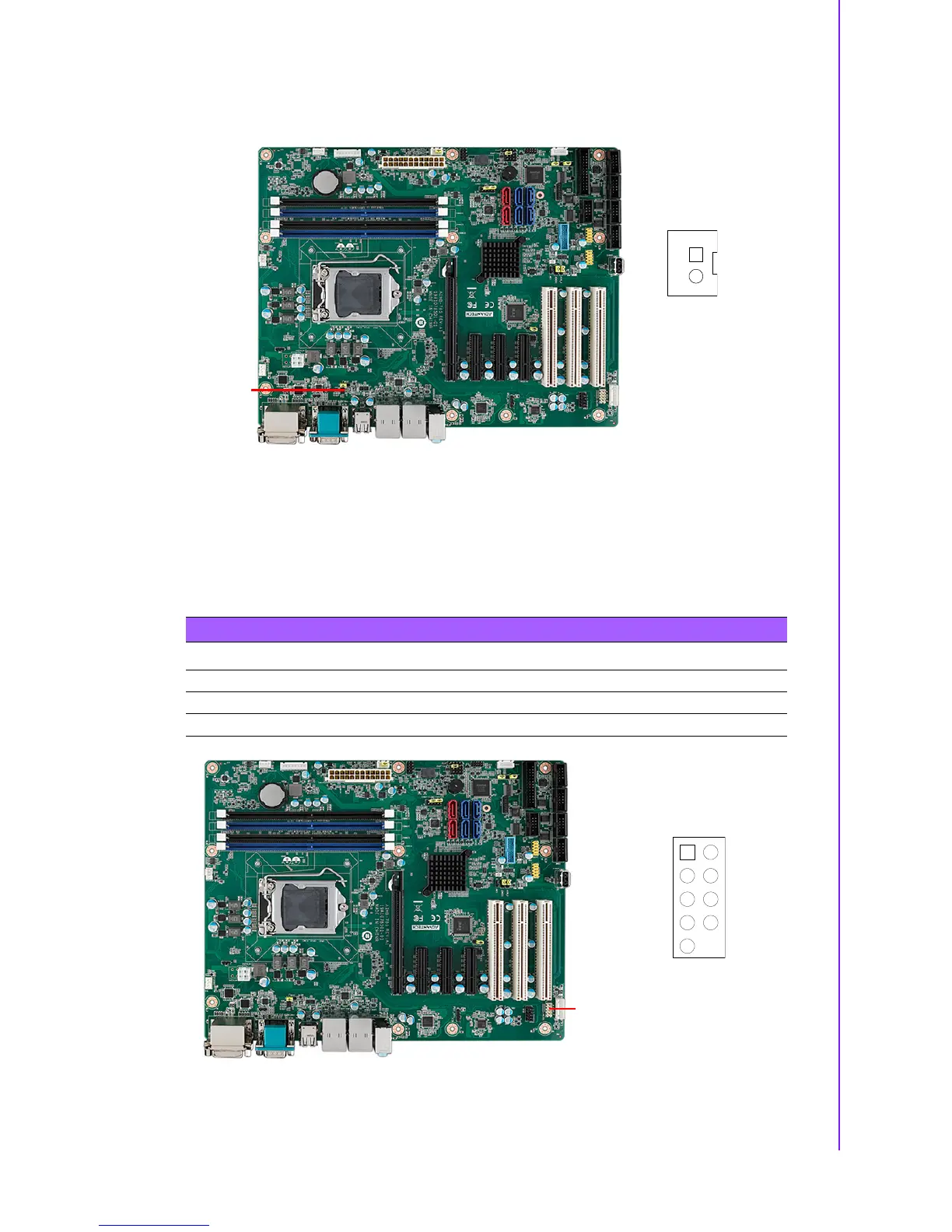

2.12 Case Open Connector (JCASE1)
JCASE1 is for chassis with a case open sensor. The buzzer on the motherboard
sounds if the case is opened unexpectedly.
2.13 Front Panel LAN Indicator Connector
(LANLED1)
JCASE1
Table 2.2: Front Panel LAN Indicator Connector
LAN Mode Indicator
LAN Link ON ON
LAN Active Flash
LAN Link Off OFF
LANLED1
