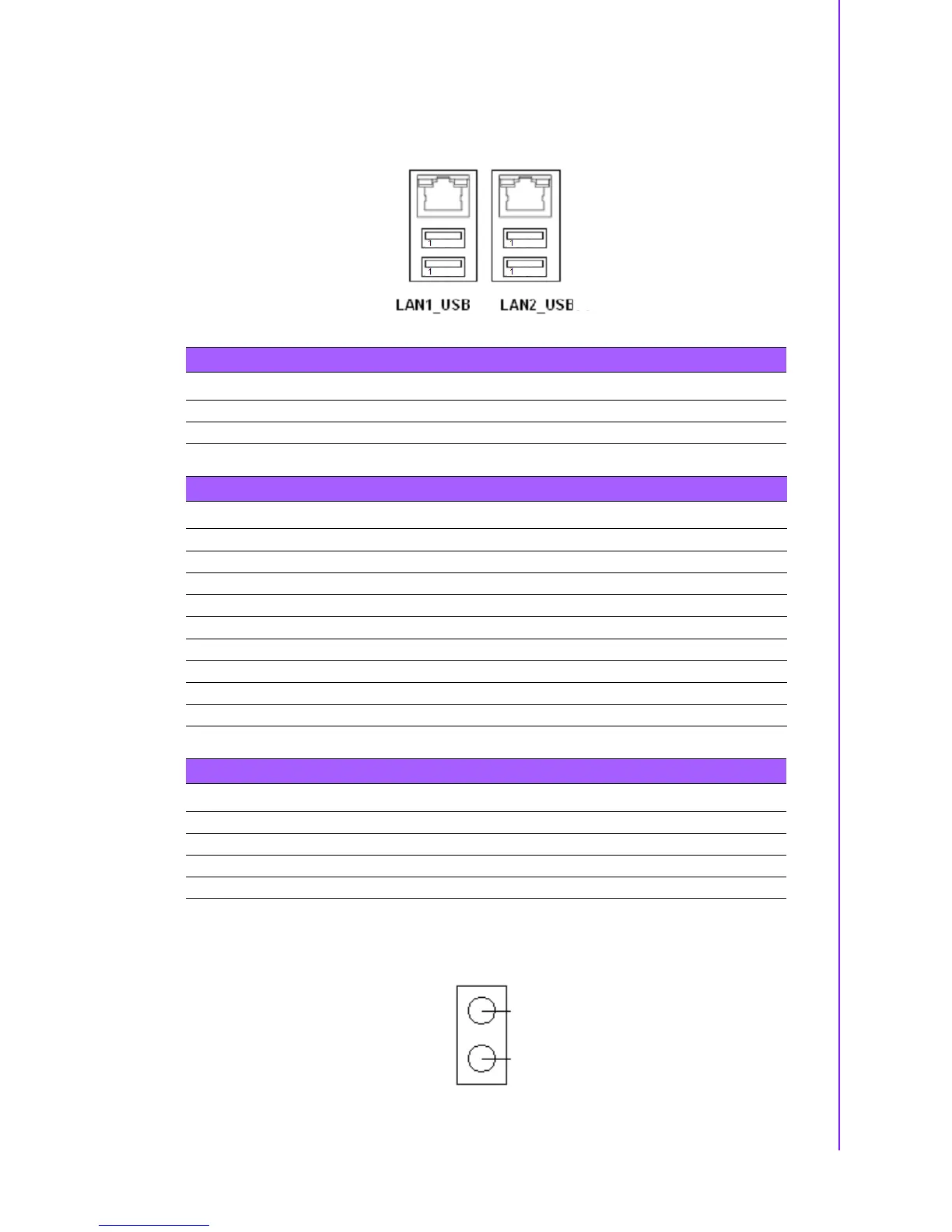

B.17 USB/LAN ports (LAN1_USB910 and
LAN2_USB12)
B.18 Line Out, MIC IN Connector (AUDIO)
Table B.18: USB2.0 Port
Pin Signal Pin Signal
1+5V 3 D+
2D- 4 GND
Table B.19: USB3.0 Port
Pin Signal
1 +5V
2D-
3D+
4GND
5STDA_SSRX−
6STDA_SSRX+
7 Shield GND_DRAIN
8 STDA_SSTX−
9 STDA_SSTX+
Table B.20: Giga LAN 10/100/1000 Base-T RJ-45 port
Pin Signal Pin Signal
1DA+ 5DC+
2DA- 6DC-
3DB+ 7DD+
4DB- 8DD-
910
12
Line Out
MIC In
AUDIO
