AIMB-785 User Manual 44
 Serial Port 1 Configuration
– Serial Port
"Enable or Disable" Serial Port 1.
– Change Settings
To select an optimal setting for serial port 1.
 Serial Port 2 Configuration
– Serial Port
"Enable or Disable" Serial Port 2.
– Change Settings
To select an optimal setting for serial port 2.
– Device Mode
Serial port 2 could be selected as "Standard serial port mode" or "IrDA 1.0
(HP SIR) mode".
 Parallel Port
To "Enable or Disable" Parallel Port.
– Change Settings
To select an optimal setting for parallel port.
– Device Mode
Parallel port could be selected as "ECP and EPP 1.9 Mode" and other set-
tings.
3.2.2.9 H/W Monitor

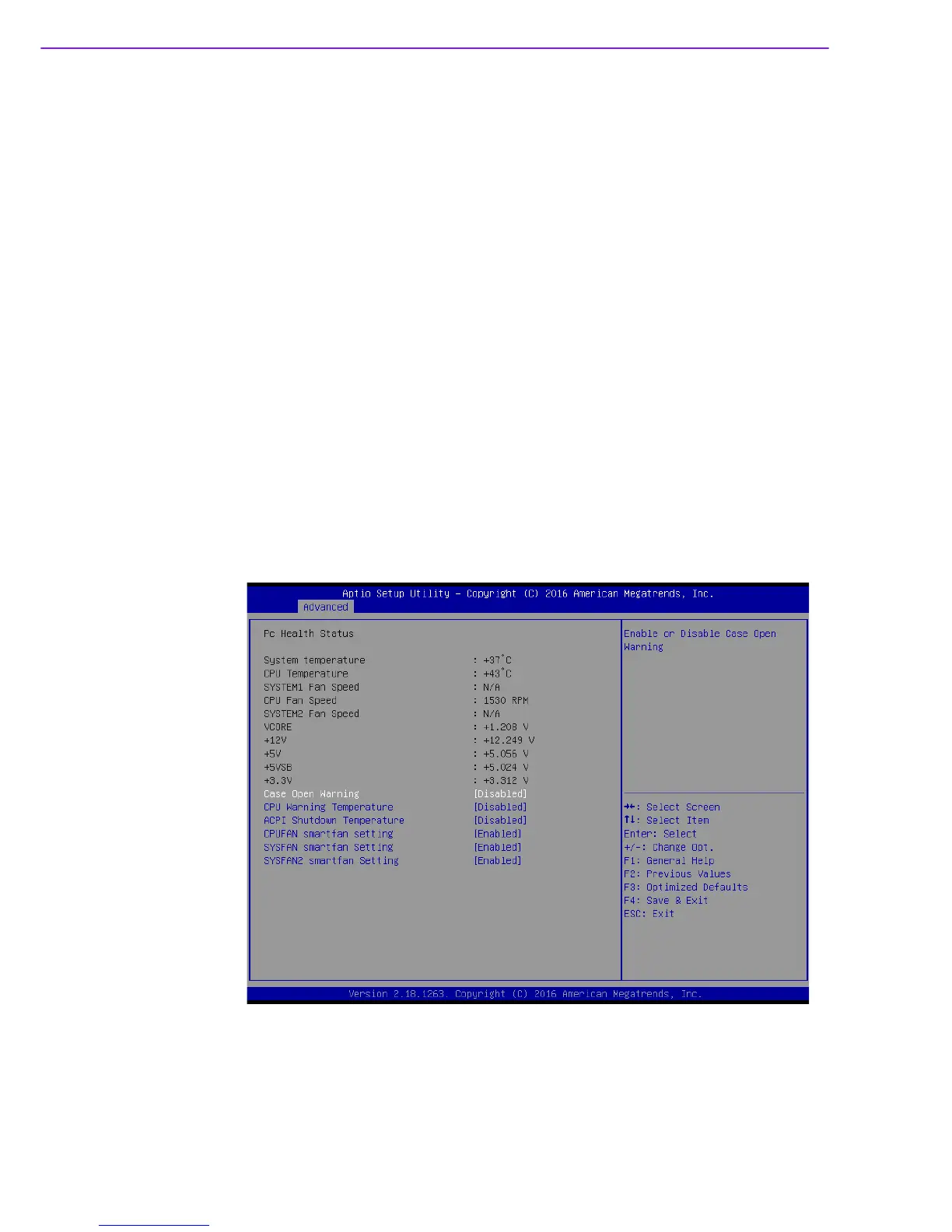

Figure 3.20 PC Health Status
 Case Open Warning
To "Enable or Disable" the Chassis Intrusion monitoring function. When it is
enabled and the case is opened, the speaker beeps.
 CPU Warning Temperature
