Chapter 2 Connecting Peripherals

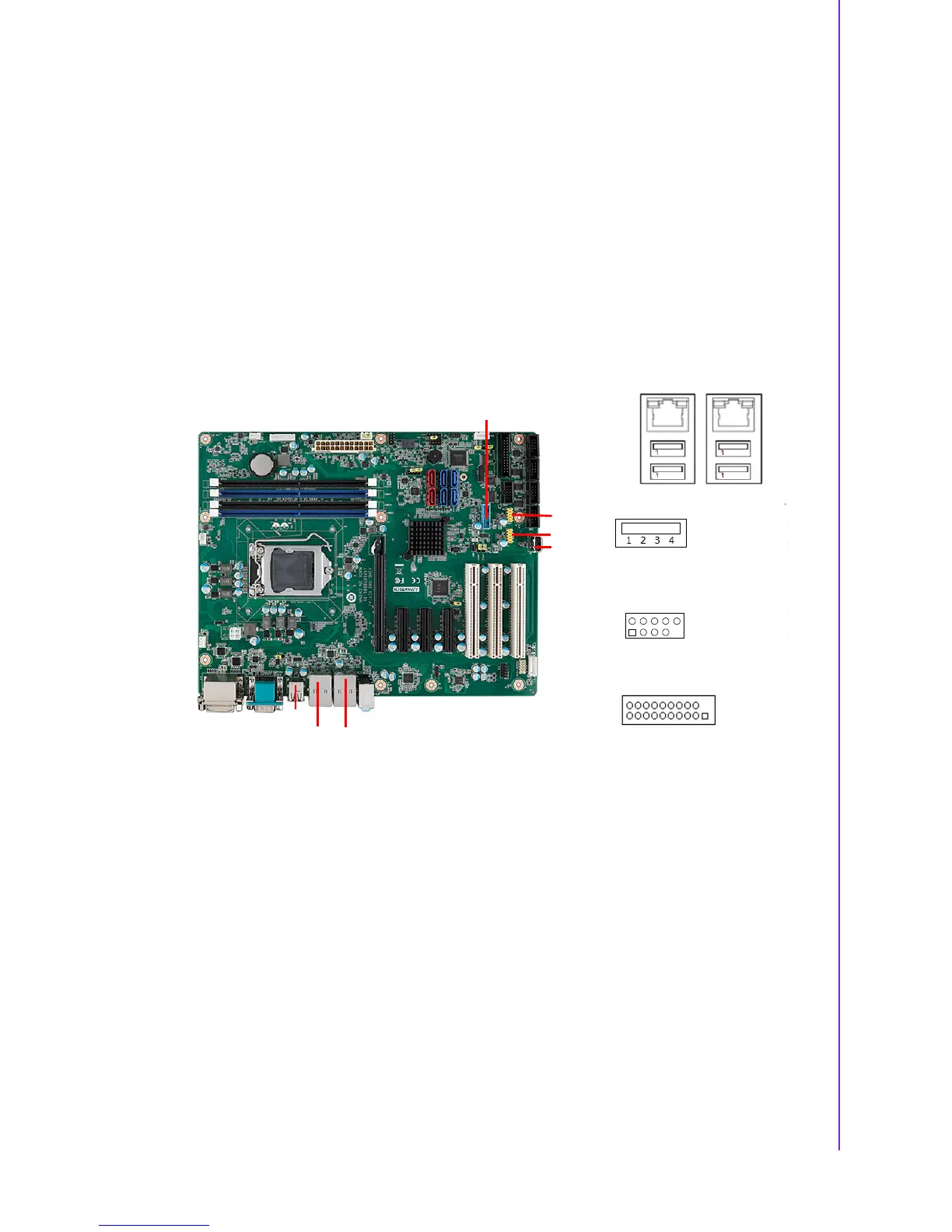

2.3 USB Ports and LAN Ports (LAN1_USB910,
LAN2_USB12, USB3, USB56, USB78, USB1112 &
USB1314)
Ports support Plug & Play and hot swapping for up to 127 external devices. The USB
1/2/3/4/13/14 ports comply up to USB specification rev. 3.0. Transmission rates of up
to 5 Gb/s and fuse protection are supported. The USB interface can be disabled in
the system BIOS setup.
The AIMB-785 is equipped with two high-performance 1000 Mbps Ethernet LANs.
They are supported by all major network operating systems. The RJ-45 jacks on the
rear plate provide convenient 1000Base-T operation.
If all USB ports are used, USB power is recommended to switch to +5 V instead of +5
V_DUAL.
