57
AIMB-785 User Manual
Chapter 3
BIOS Operation
3.2.3.3
PEG Port Configuration

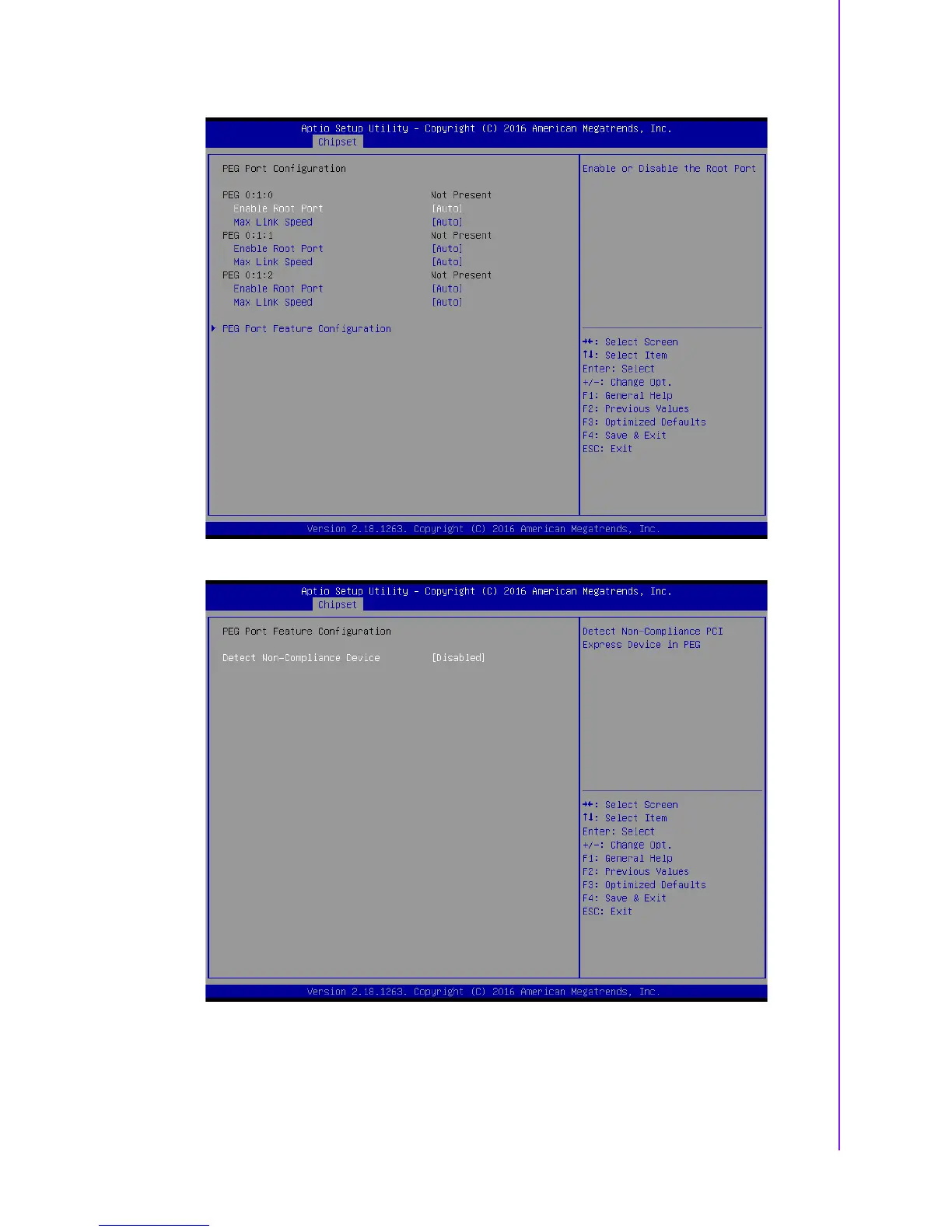

Figure 3.36 PEG Port Configuration
Figure 3.37 PEG Port Feature Configuration
Enable Root Port
Enable or disable the root port
Max Link speed
Configure PEG 0:1:0 max speed
