Chapter 2 Getting Started
2.2 Connecting the Hardware
Next, we will explain how to find a proper location for your serial device server, and
then explain how to connect to the network, hook up the power cable, and connect to
the EKI-1510X series’s serial port.
2.2.1 Physical Mounting

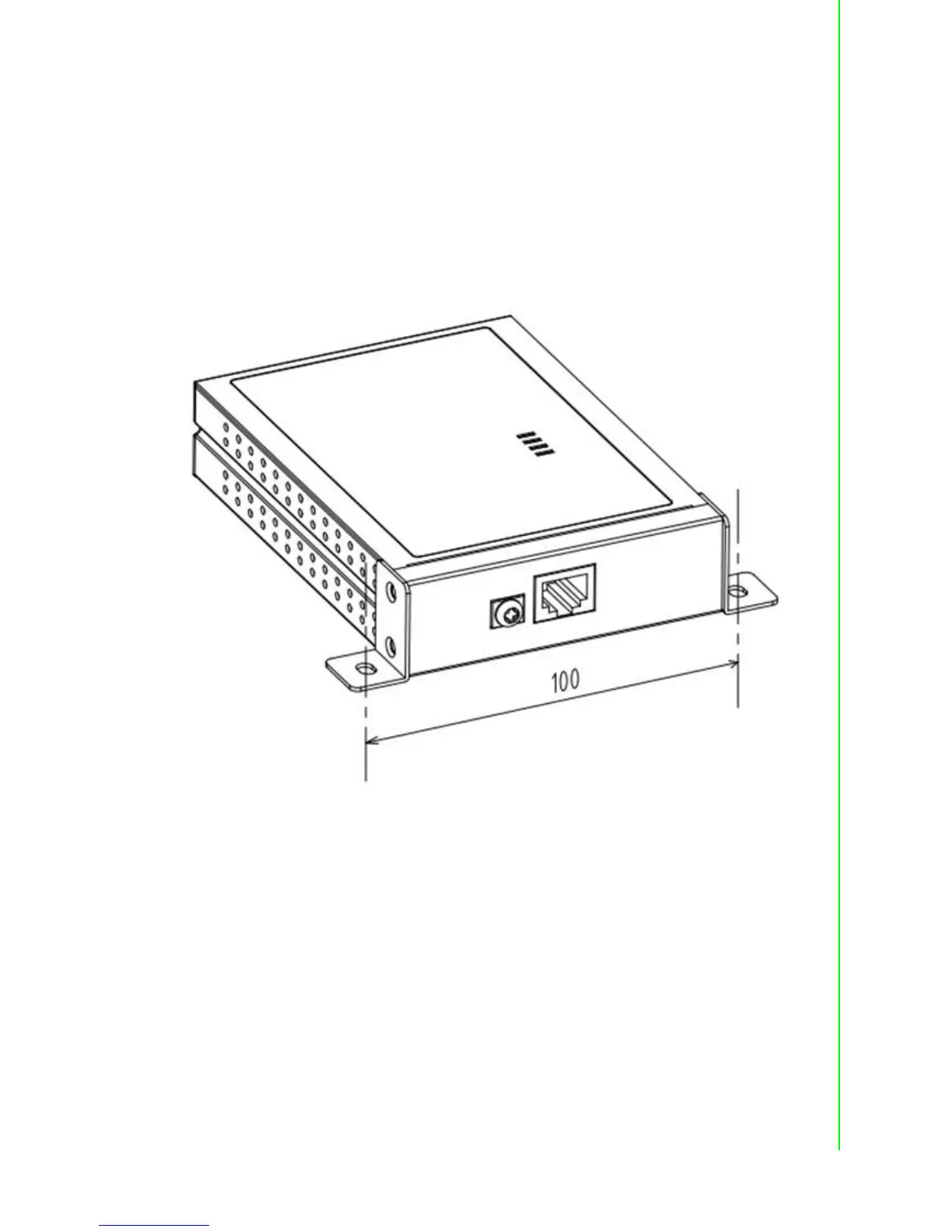

After attaching the mounting kit, you can install the EKI-1510X series serial device
server onto a flat wall surface, and choose the correct screw according the material
of your mounting position.
2.2.2 Network Connection
To use the 10/100Base-T Ethernet connector located on the EKI-1510X series, you
will simply plug one end of your Ethernet cable into the 10/100Base-T connector, and
the other end into the hub/switch connected to your network or direct connect to your
PC.
Cabling requirements for the Ethernet
Use an RJ-45 to connect the Ethernet port of the EKI-1510X series to the network
hub. The cable for connection should be above Category 3 (for 10Mbps data rate) or
Category 5 (for 100Mbps data rate) UTP/STP cable, which is compliant with EIA/TIA
586 specifications. EKI-1510X series can be connected to other hubs or switches
through a twisted-pair straight through the cable or a crossover cable up to 100m
long.
