2.5.2 DIN-rail Mounting
You can also mount EKI-2548I on a standard DIN-rail by following the steps below.
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit
is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first.
First, hang the EKI-2548I to the DIN-rail with angle of inclination. See the figure below.

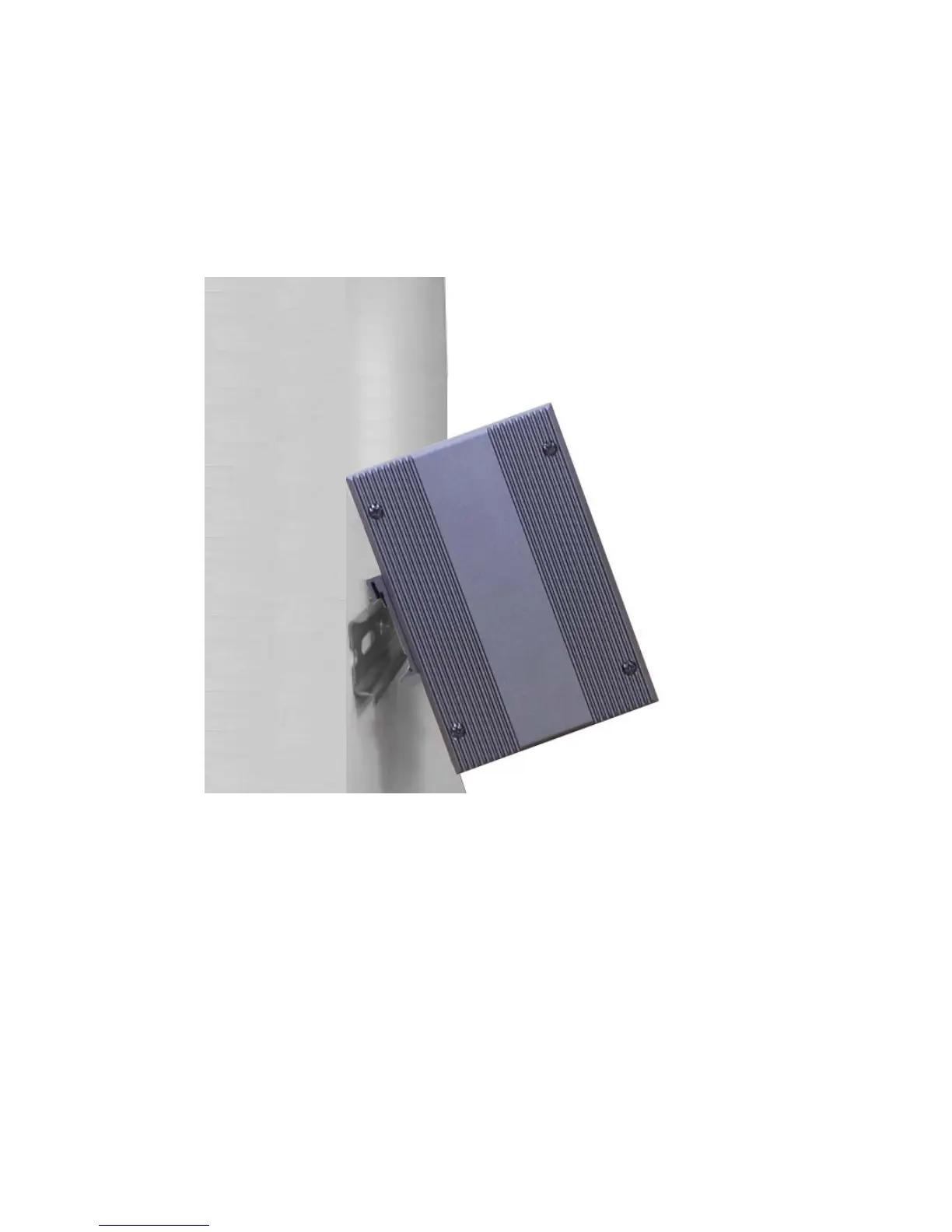

Figure 2.5-2 Installation to DIN-rail Step 1
15 Chapter2
