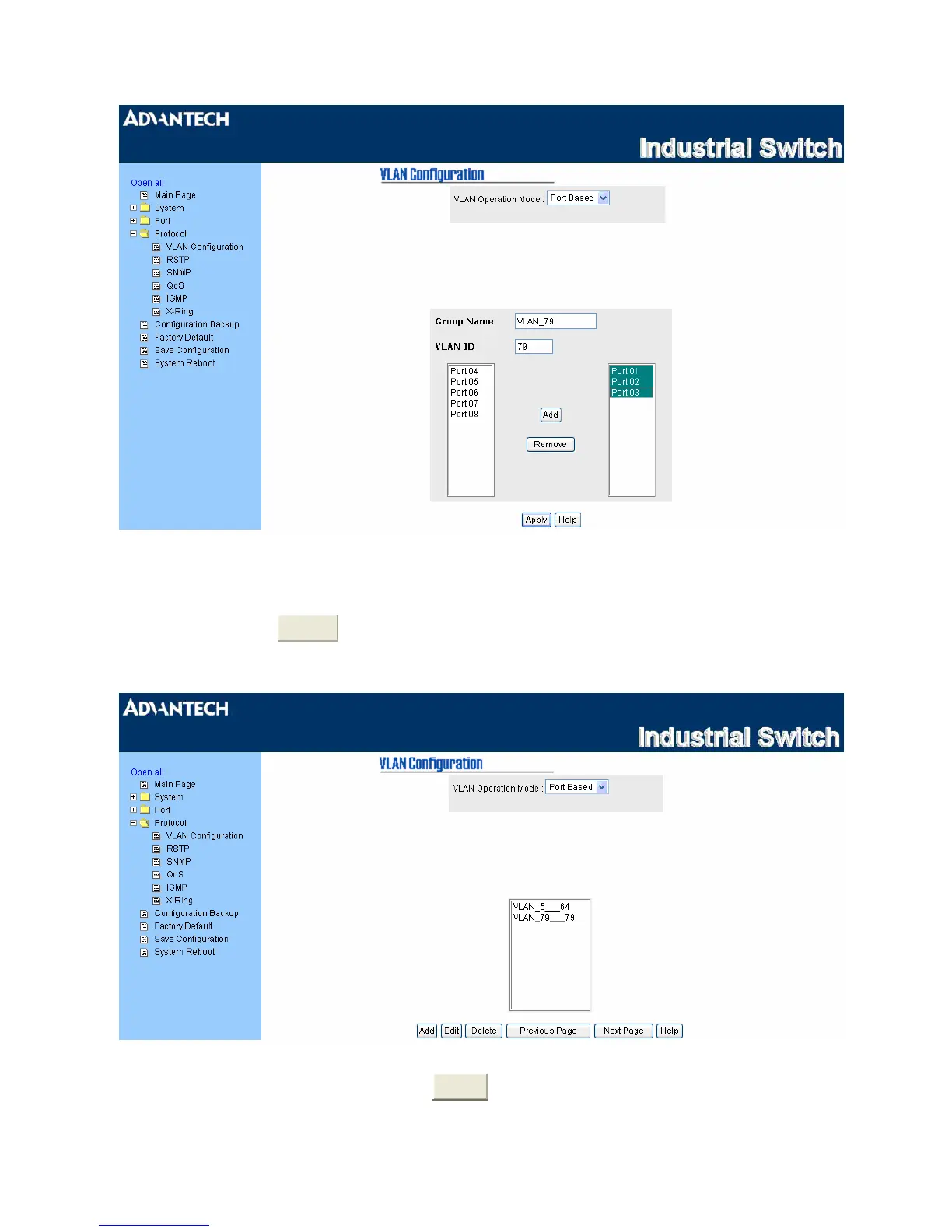

Figure 3.1-22 Port-based Mode--Add
•
Enter Group Name and VLAN ID. Having selected the port numbers, click Add to add the ports to the
right field to group these members into a VLAN group or remove any of them listed in the right field
from the VLAN.
•
And then, click
A
pp
l
y
to have the settings take effect.
•
You will see the VLAN displays.
Figure 3.1-23 Port-based Edit/Delete
•
Select the VLAN group name and click
Delete
to delete the VLAN.
43 Chapter3
