Advantech PCA-6751 Series - Table C-14: External Keyboard Connector; Table C-15: ATX Power Connector

76 PCA-6751/PCA-6751V User's Manual

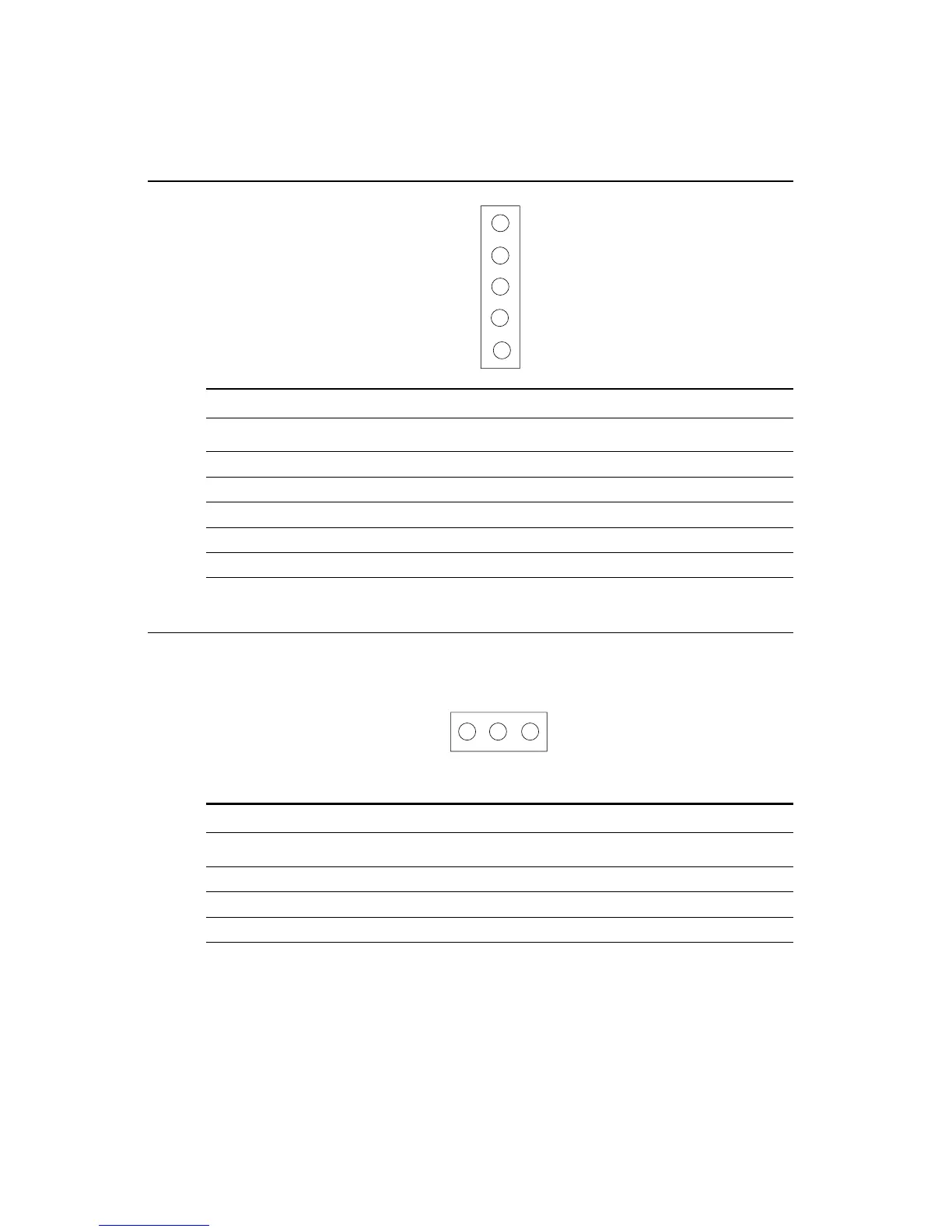

C.14 External Keyboard Connector (CN17)
Table C-14: External keyboard connector
Pin Signal
1 CLK
2DATA
3NC
4 GND
5V
CC
C.15 ATX Power Connector (CN18)
Table C-15: ATX power connector
Pin Signal
1 5 V SB
2 N/C
3 PS_ON
1
2
3
4
5
123
