Advantech PCA-6781 User Manual

11 PCA-6781 User Manual
Chapter 2 Installation

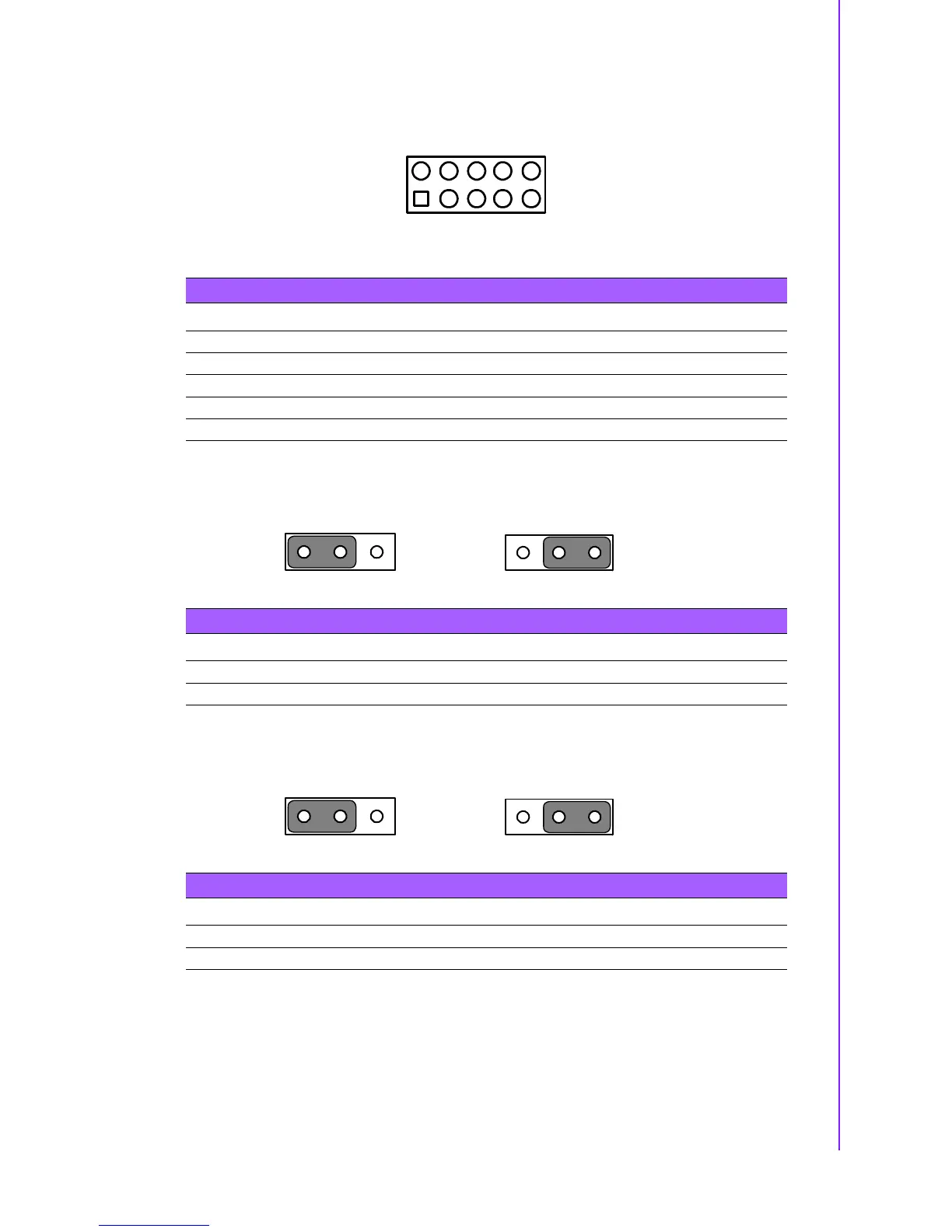

2.5.1 Front Panel (CN1)
2.5.2 LVDS Panel Power Select (J1)
2.5.3 LVDS VBR Select (J2)
Table 2.3: Front Panel
Pin Function
1-2 HDD LED
3-4 Power LED
5-6 Suspend LED
7-8 Reset
9-10 Power Button
3
64
5
28
9
7
10
1
Table 2.4: LVDS Panel Power Select
Pin Function
1-2 (default) +3.3 V
2-3 +5 V
123
1 23
Table 2.5: LVDS VBR Select
Pin Function
1-2 High
2-3 Low
123
1 23
