PCIE-1816_1816H User Manual 52

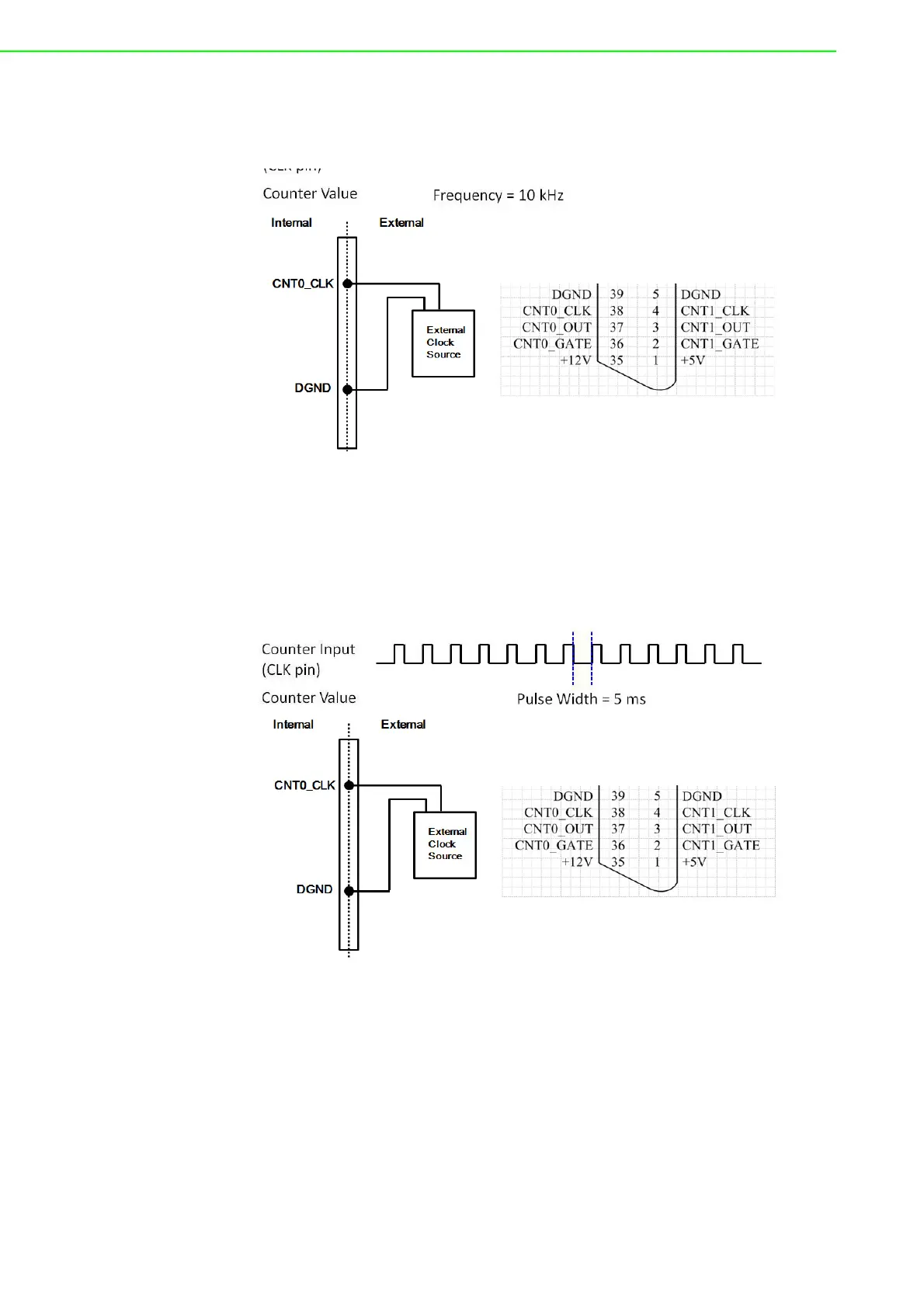

2. Frequency Measurement Connection
PCIE-1816/ 1816H built-in counter can measure the frequency value of the sig-
nal connected to counter input.
3. Pulse Width measurement Connection
PCIE-1816/1816H built-in counter can measure the pulse width value of the sig-
nal connected to counter input. The measurable range is 50 ns to 107 seconds.
You can measure both the logic high time and logic low time within the measur-
able range.
