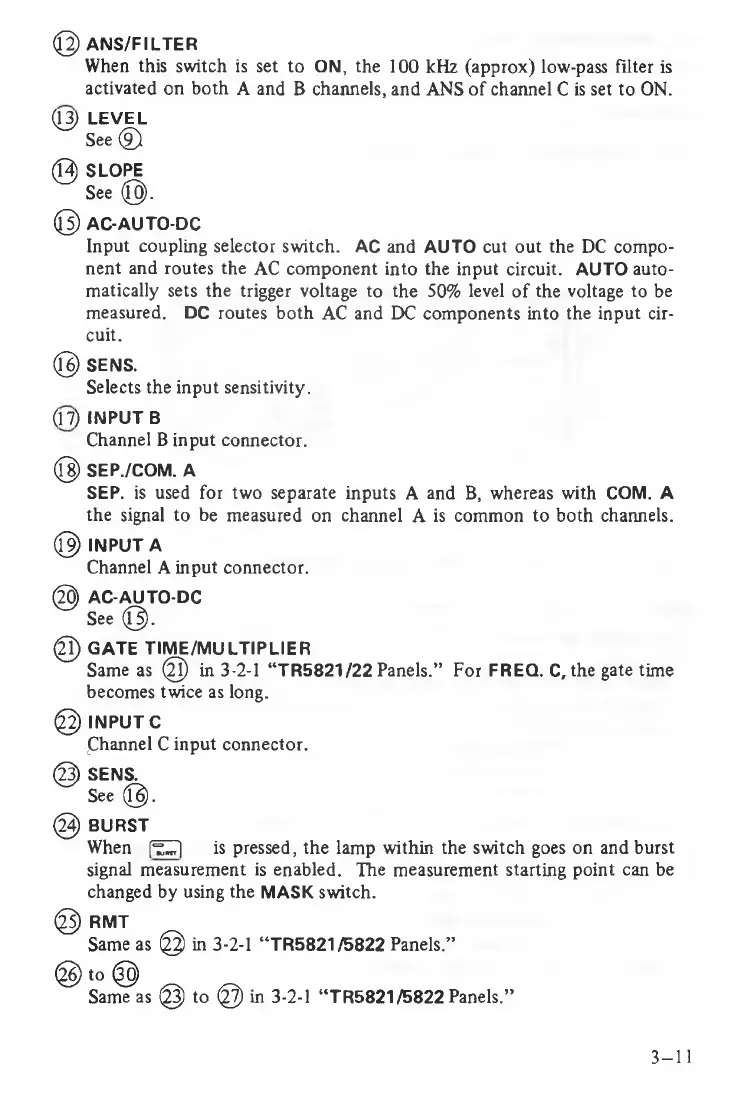

© ANS/FILTER
When this switch is set to ON, the 100 kHz (approx) low-pass filter is
activated on both A and B channels, and ANS of channel C is set to ON.
(JJ) LEVEL
S e e ®
@ SLOPE
See © .
© AC-AUTO-DC
Input coupling selector switch. AC and AUTO cut out the DC compo
nent and routes the AC component into the input circuit. AUTO auto
matically sets the trigger voltage to the 50% level of the voltage to be
measured. DC routes both AC and DC components into the input cir
cuit.
@ SENS.
Selects the input sensitivity.
(n) INPUT B
Channel B input connector.
@ SEP./COM. A
SEP. is used for two separate inputs A and B, whereas with COM. A
the signal to be measured on channel A is common to both channels.
© INPUT A
Channel A input connector.
@ AC-AUTO-DC
See © .
@ GATE TIME/MULTIPLIER
Same as @ in 3-2-1 “TR5821/22 Panels.” For FREQ. C, the gate time
becomes twice as long.
@ INPUT C
^Channel C input connector.
@ SENS.
See © .
@ BURST
When (^ ] is pressed, the lamp within the switch goes on and burst
signal measurement is enabled. The measurement starting point can be
changed by using the MASK switch.
@ RMT
Same as @ in 3-2-1 “TR5821/5822 Panels.”
@ to ©
Same as @ to @ in 3-2-1 “TR5821/5822 Panels.”
3 -1 1
