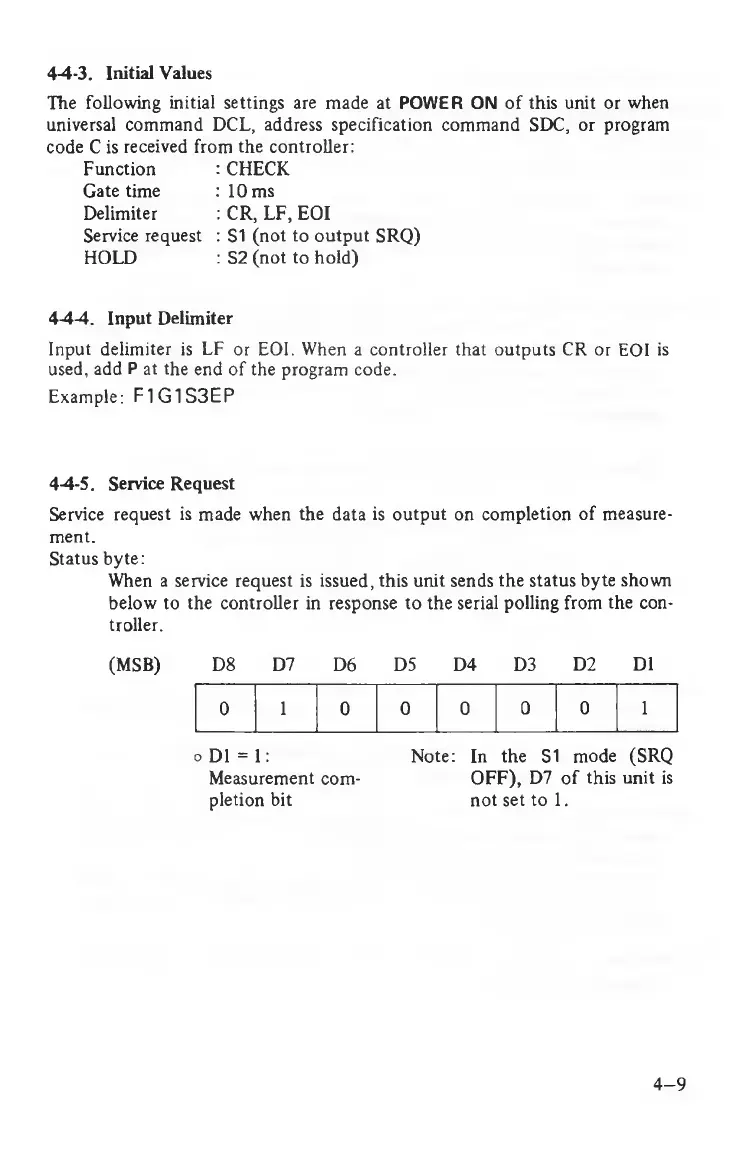

The following initial settings are made at POWER ON of this unit or when
universal command DCL, address specification command SDC, or program
code C is received from the controller:
Function : CHECK
Gate time : 10 ms
Delimiter : CR, LF, EOI
Service request : S1 (not to output SRQ)
HOLD : S2 (not to hold)
44-3. Initial Values
4-4-4. Input Delimiter
Input delimiter is LF or EOI. When a controller that outputs CR or EOI is
used, add P at the end of the program code.
Example: F1G1S3EP
44-5. Service Request
Service request is made when the data is output on completion of measure
ment.
Status byte:
When a service request is issued, this unit sends the status byte shown
below to the controller in response to the serial polling from the con
troller.
(MSB) D8 D7 D6 D5 D4 D3 D2 D1
0
1
0
0 0
0 0
1
o D1 = 1:
Measurement com
pletion bit
Note: In the S1 mode (SRQ
OFF), D7 of this unit is
not set to 1.
4 -9
