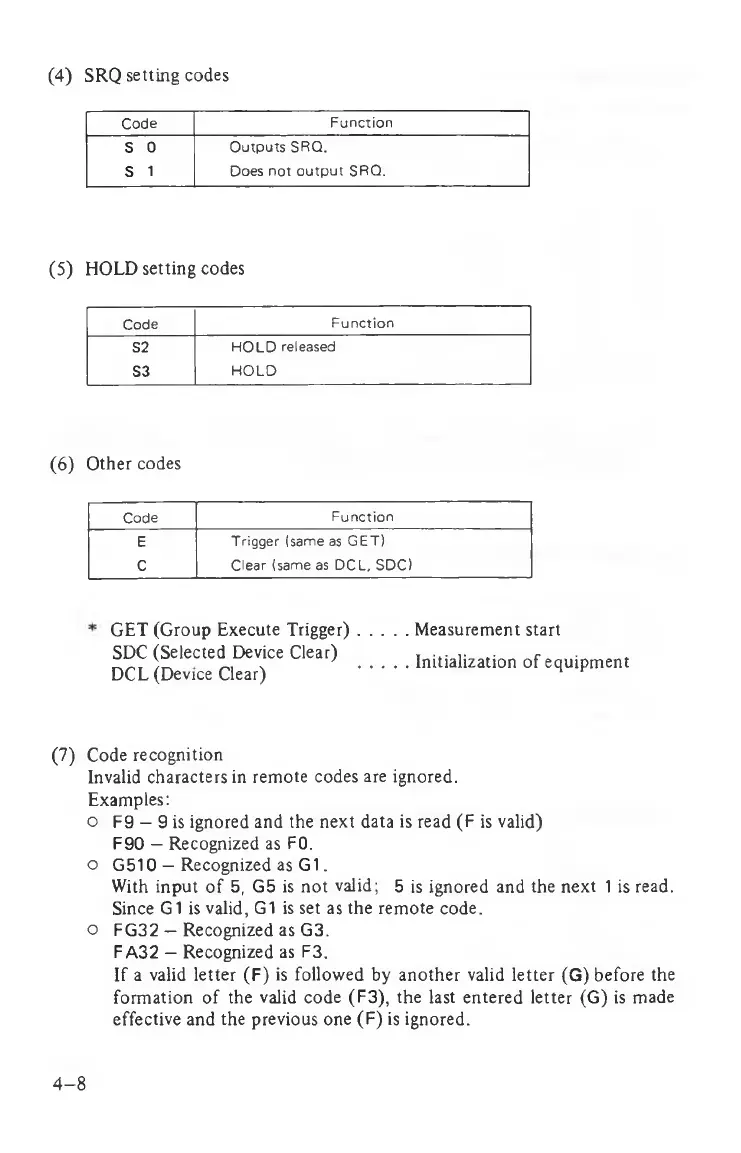

(4) SRQ setting codes
Code
Function
S 0
S 1
Outputs SRQ.
Does not output SRQ.
(5) HOLD setting codes
Code
Function
S2
HOLD released
S3
HOLD
(6) Other codes
Code
Function
E
C
Trigger (same as GET)
Clear (same as DCL, SDC)
GET (Group Execute Trigger)
...........
Measurement start
SDC (Selected Device Clear)
...........
Initialization of equipment
DCL (Device Clear)
(7) Code recognition
Invalid characters in remote codes are ignored.
Examples:
o F9 — 9 is ignored and the next data is read (F is valid)
F90 — Recognized as FO.
o G510 — Recognized as G1.
With input of 5, G5 is not valid; 5 is ignored and the next 1 is read.
Since G1 is valid, G1 is set as the remote code,
o FG32 — Recognized as G3.
FA32 - Recognized as F3.
If a valid letter (F) is followed by another valid letter (G) before the
formation of the valid code (F3), the last entered letter (G) is made
effective and the previous one (F) is ignored.
4 -8
