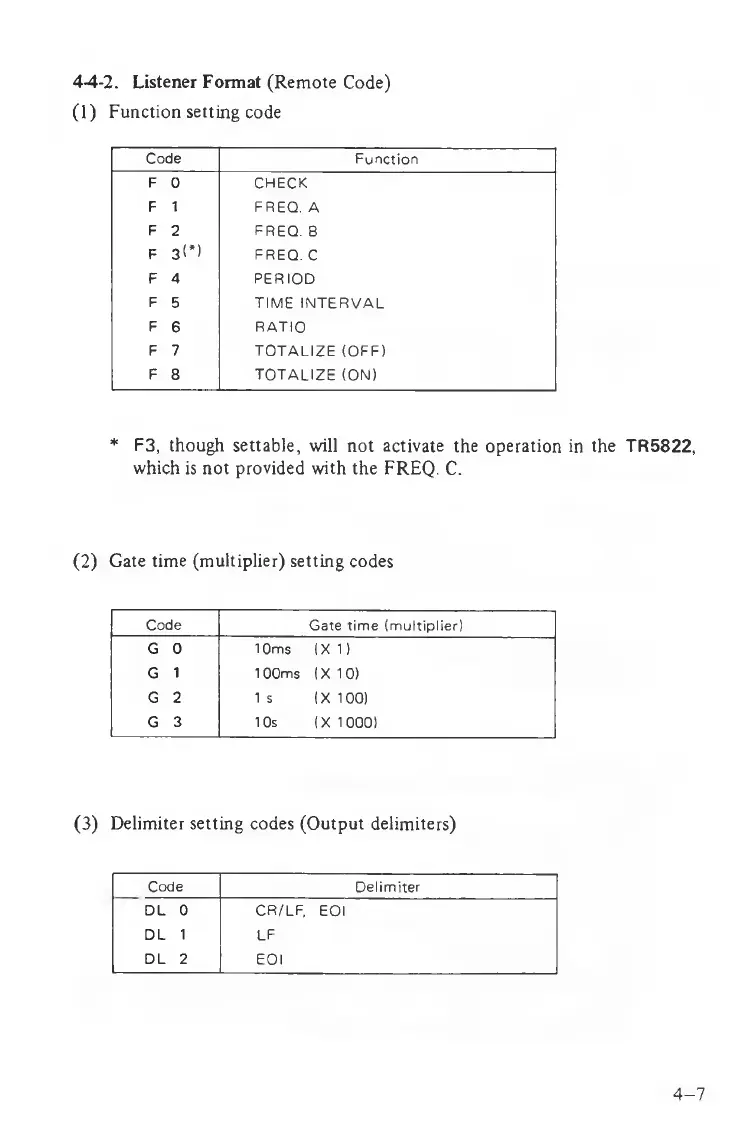

4-4-2. Listener Format (Remote Code)
(1) Function setting code
Code
Function
F 0
CHECK
F 1
FREQ. A
F 2
FREQ. B
F 3<*>
FREQ. C
F 4
PERIOD
F 5
TIME INTERVAL
F 6
RATIO
F 7
TOTALIZE (OFF)
F 8
TOTALIZE (ON)
* F3, though settable, will not activate the operation in the TR5822,
which is not provided with the FREQ. C.
(2) Gate time (multiplier) setting codes
Code
Gate time (multiplier)
G 0
10ms (X 1)
G 1
100ms
(X 10)
G 2
1 s
(X 100)
G 3
10s
(X 1000)
(3) Delimiter setting codes (Output delimiters)
Code Delimiter
DL 0 CR/LF. EOI
DL
1 LF
DL 2
EOI
