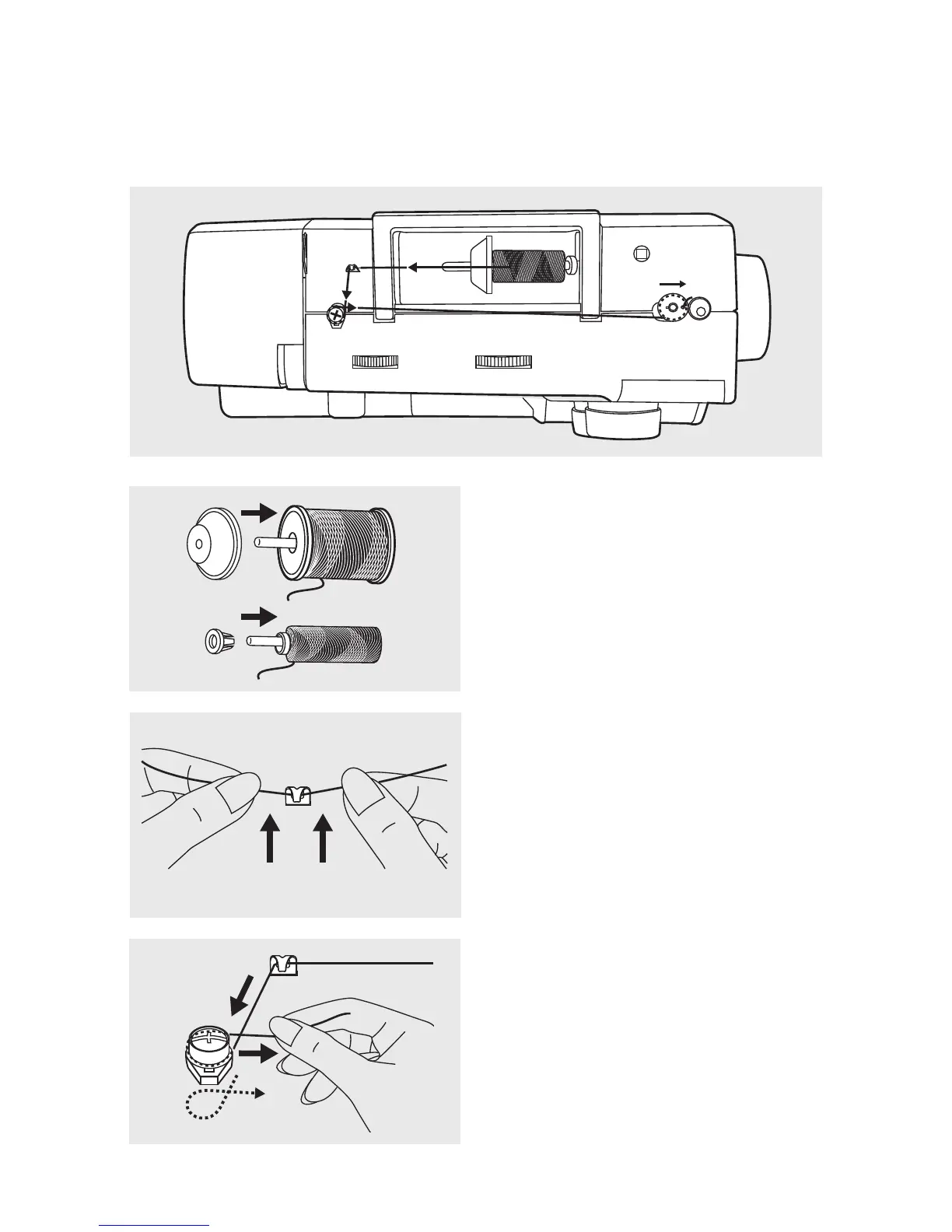

Winding the bobbin
1. Place the thread and spool holder
onto the spool pin.
For smaller spools of thread, place the
spool holder with the small side next
to the spool or use the small spool
holder.
2. Draw the thread from the spool
through the upper thread guide.
3. Wind the thread clockwise around the
bobbin winder tension discs.
1
2
3
4-10
10
Instruction manual for Model AEG 30Z /AEG 35Z
