AEMC 8500 - Mechanical; Cable Identification

8 Digital Transformer Ratiometer DTR
®
Model 8500
3.2 Mechanical
Connections: Cannon
®
XLRconnectors&largecolor-codedindustrialclips
Leads:15ft,H&Xcolor-coded,incarryingbag
Display:Duallinealpha-numeric3.875x.875"withcontrastadjustment
and backlight
Operating Temperature: 0° to 50°C (32° to 122°F)
0 to 90% RH (without condensation)
Case: Heavy duty structural polypropylene (yellow)
Dimensions: 13 x 12 x 6" (330 x 305 x 152mm)
Weight: 14 lb (6.4kg)
*All specications are subject to change without notice

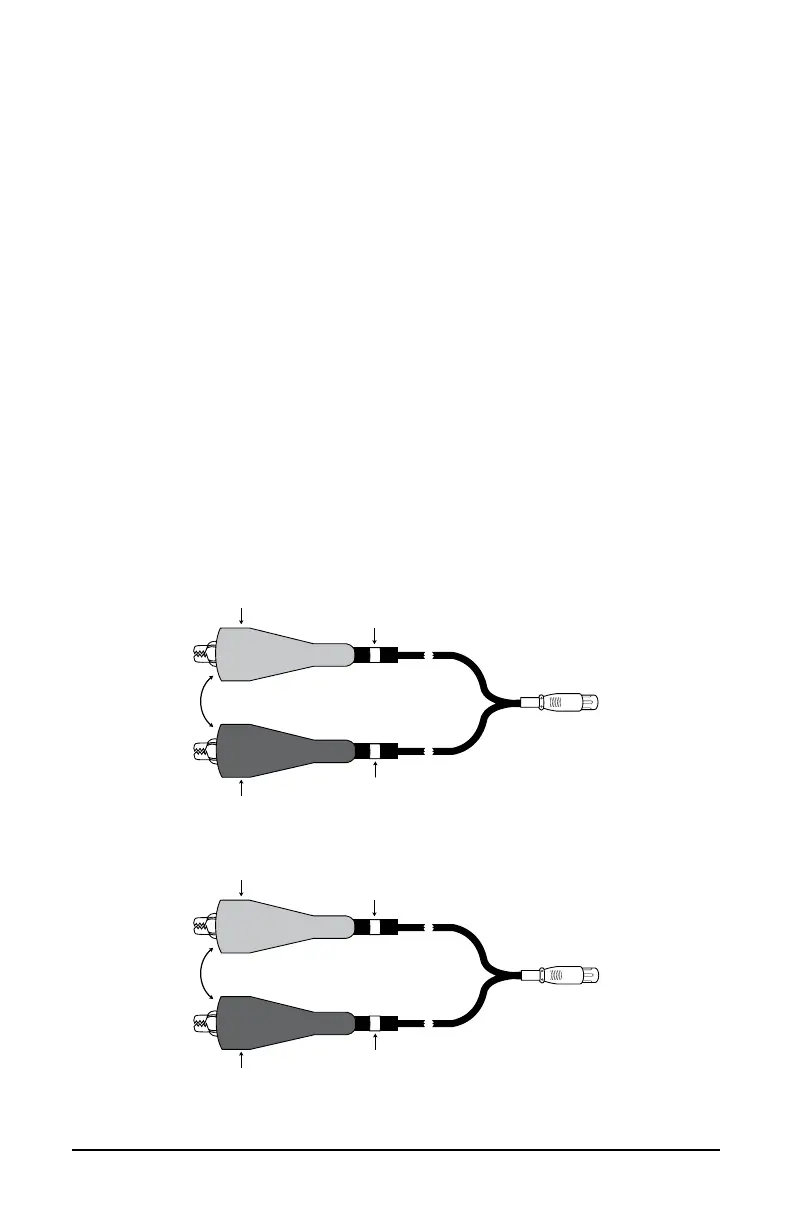

3.3 Cable Identification
H H HH H H
H CABLE SET
RED BOOT
BLACK BOOT
"H" IDENTIFIER
5 PIN
CONNECTOR
"H" IDENTIFIER
X X XX X X
X CABLE SET
RED BOOT
BLACK BOOT
"X" IDENTIFIER
3 PIN
CONNECTOR
"X" IDENTIFIER
