AEQ BC 2000 User Manual

BC 2000 DIGITAL
Audio Routing, Mixing and Processing System for Program Production Centers
HARDWARE MANUAL
12

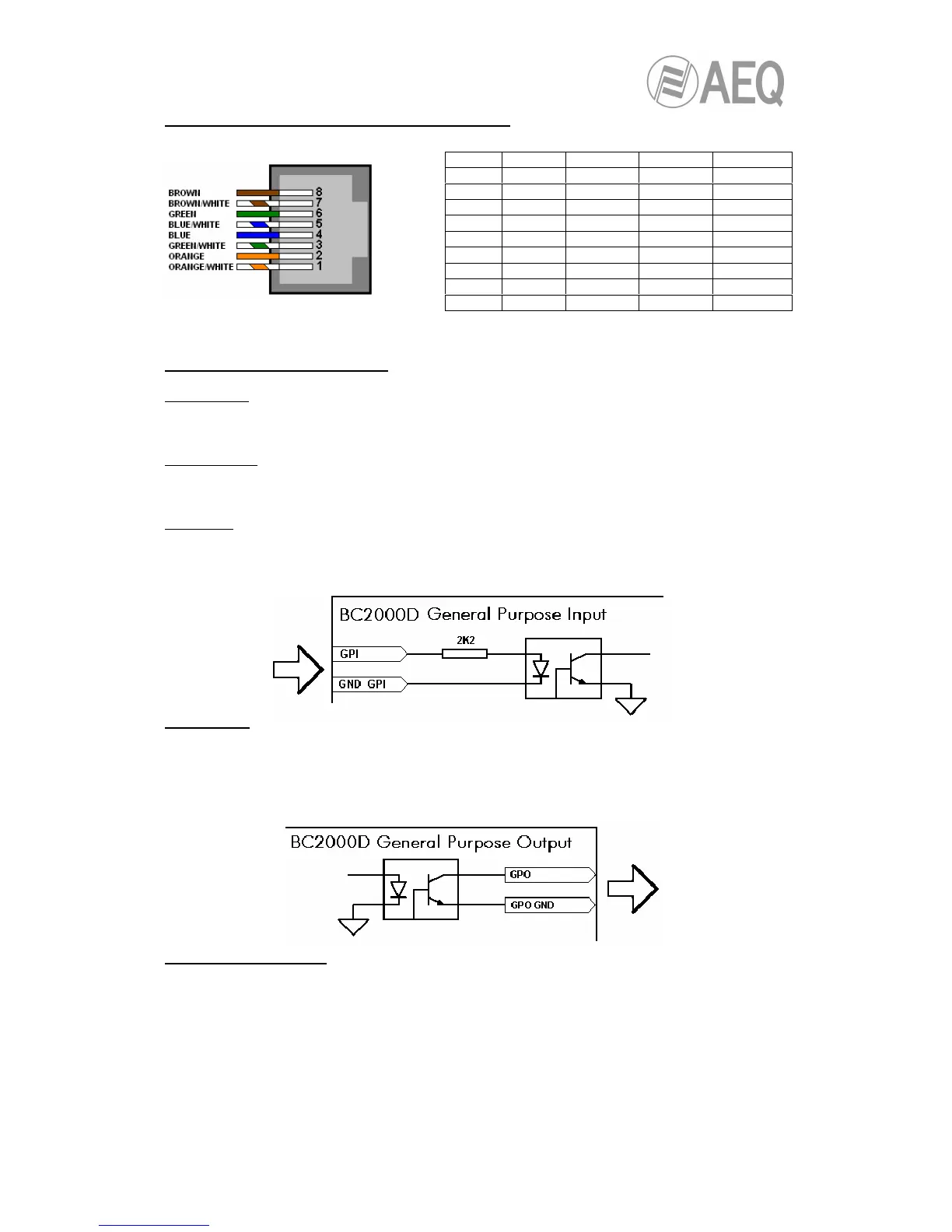

Signal layout in the RJ45 connectors of the board.
NOTE: Pin layout corresponds to T568B standard.
BC2202 technical specifications.
Digital inputs:
- Isolated by transformer.
- SRC converters accept signal at 32, 44.1, 48 and 96 kHz and 16, 20 or 24 bits.
Digital outputs:
- Default digital signal format: 24 bits, 48 kHz. The outputs are equipped also with SRC
converters that can deliver signal at 32, 44.1, 48 and 96 kHz (software configurable).
GPI inputs:
- Inputs protected by optocoupler (4N35).
- Maximum input current: 60 mA.
- A voltage ranging from 5 V to 30 V will be applied.
GPO outputs:
- Outputs protected by optocoupler (TLP371).
- Maximum current: 80 mA.
- Recommended maximum voltage: 200 V.
- Maximum power: 250 mW at 40º C.
- Requires external power supply.
General characteristics.
- Approximate consumption: 4 watts.
- Approximate dimensions:
Front: 17 x 172 mm.
Depth: 255 mm.
- Approximate weight: 295 grams.
Characteristics are subject to change without notice.
Pin '1' Inputs
'2' Outputs
'3' GPI '4' GPO
8 IN 2 N OUT 2 N GND GPI2
GND GPO2
7 IN 2 P OUT 2 P GPI2 GPO2
6 IN 3 N OUT 3 N GND GPI3
GND GPO3
5 IN 4 N OUT 4 N GND GPI4
GND GPO4
4 IN 4 P OUT 4 P GPI4 GPO4
3 IN 3 P OUT 3 P GPI3 GPO3
2 IN 1 N OUT 1 N GND GPI1
GND GPO1
1 IN 1 P OUT 1 P GPI1 GPO1
Chassis
GND GND GND GND
