3.9. BC2206. AES/EBU digital inputs module.
General description.
The BC2206 board can manage eight TDM IN bus time-slots to insert four AES3 (or SPDIF)
digital stereo signals into the system.
This board is inserted into the rear part of the BC2000DF rack.

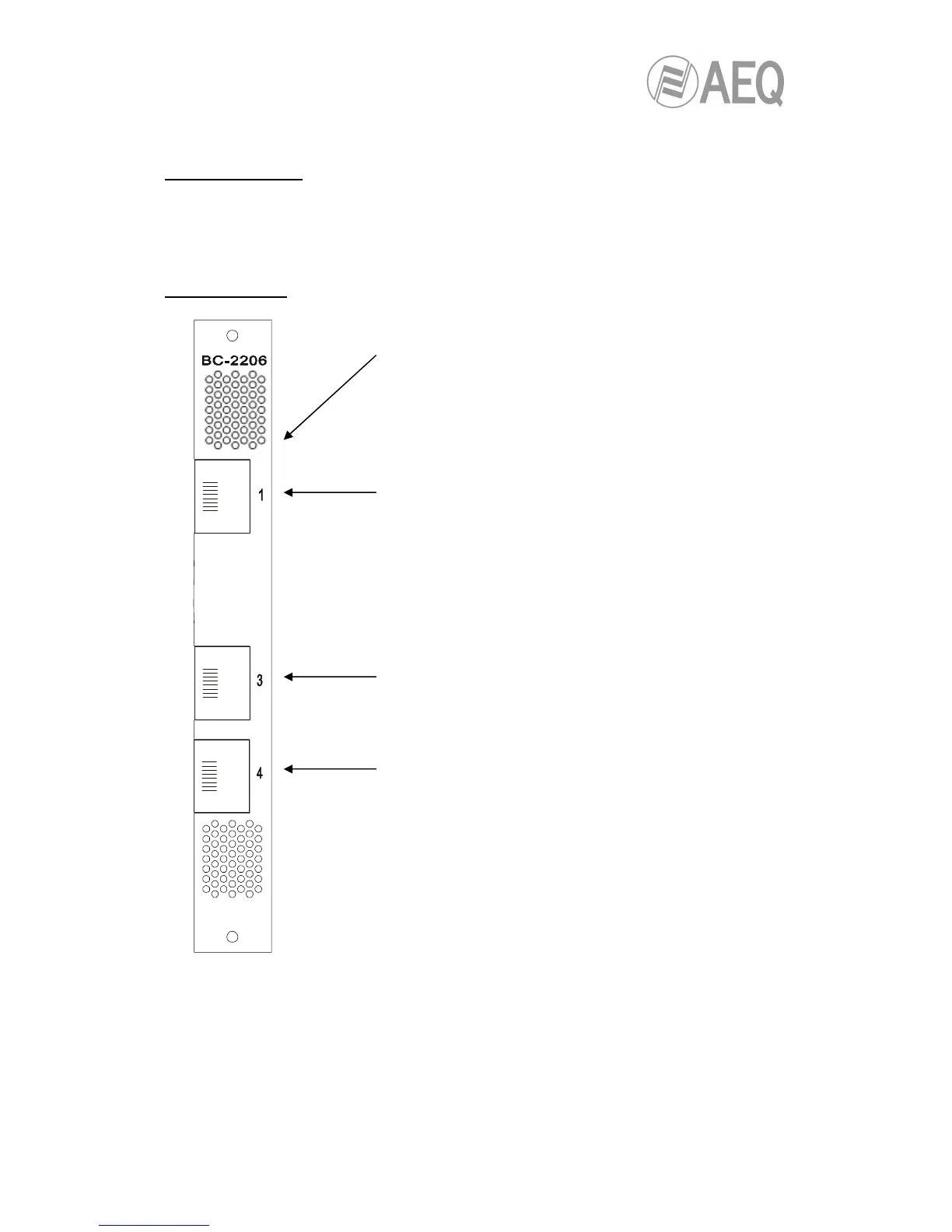

Panel description.
'HW ERROR'
red
LED*:
this LED will turn on when the
system starts and, depending on its status, it will indicate
during normal operation:
- Configured and active board: fast blinking.
- Not configured board: slow blinking.
- Board start error: LED on and fixed.
- Board configured in backup mode: LED off.
'1' RJ45 type connector: 4 AES3 format digital
stereophonic inputs. Each input has an SRC that enables
automatic adjustment of different AES/EBU signal formats.
'3' RJ45 type connector: 4 independent inputs
configurable as general purpose inputs (GPI).
'4' RJ45 type connector: 4 independent outputs
configurable as general purpose outputs (GPO).
* This operation way of 'HW ERROR' LED is valid for 4.06 microcontroller
module firmware version (and later versions).
