3.15. BC2211. AES 10 MADI module for linking racks.
General description.
The BC2211 board manages 56 or 64 TDM bus time-slots to send and/or receive them through
a 125-Mbps MADI multichannel digital audio link using coaxial or optical fiber cable. This board
allows you to interconnect two BC 2000 D racks, or to connect any other MADI equipment item.
It is compliant with the AES-10 standard.
You can install two modules with the same link for redundancy purposes.
This board is inserted into the rear part of the BC2000DF rack.

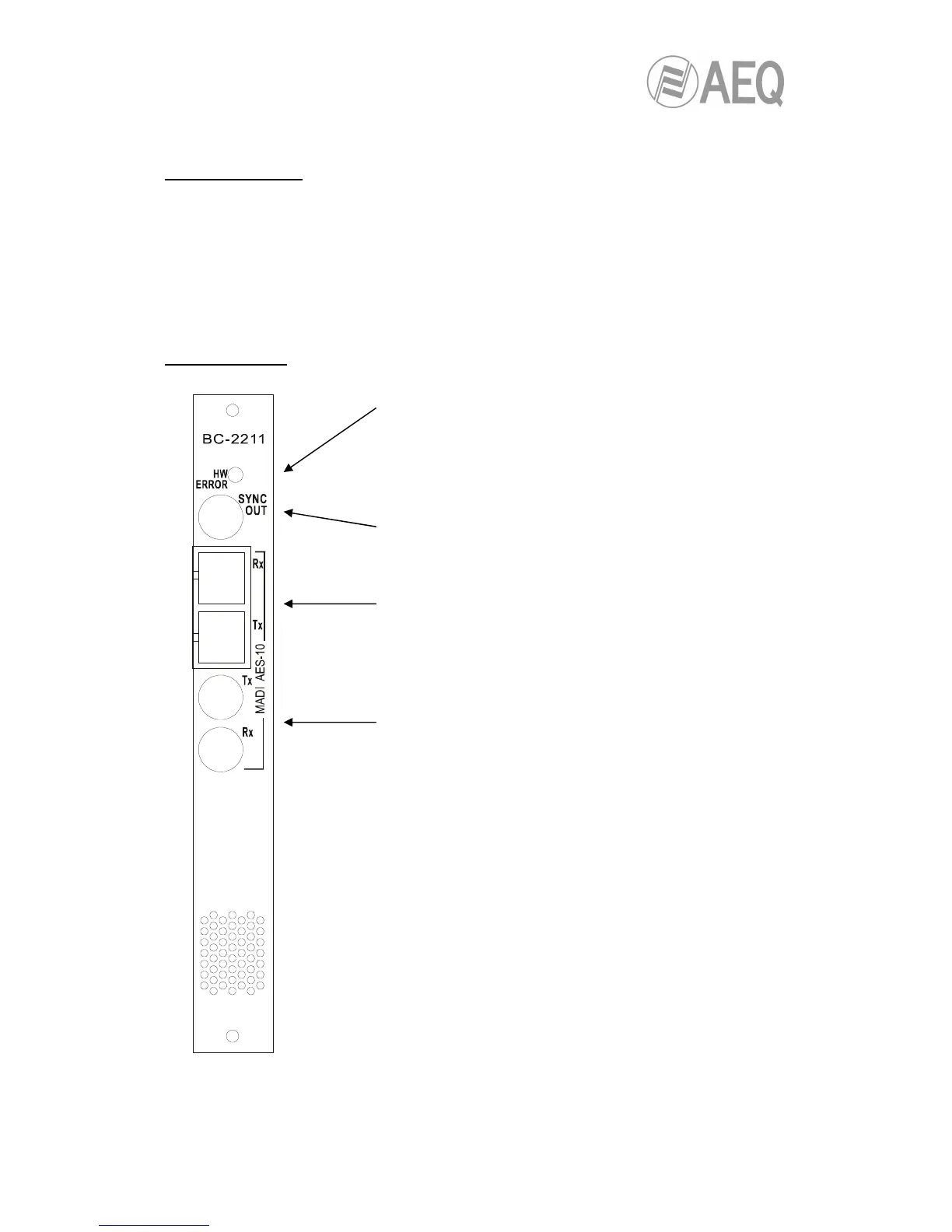

Panel description.
this LED will turn on when the
system starts and, depending on its status, it will indicate
during normal operation:
- Configured and active board: fast blinking.
- Not configured board: slow blinking.
- Board start error: LED on and fixed.
- Board configured in backup mode: LED off.
1.6-5.6 'SYNC OUT' female coaxial connector: word-
clock synchronism output with TTL level.
SC 'Rx' and 'Tx' connectors: FDDI PMD optical fiber
interface with a range of 2000 meters (if your installation
entails a range greater than 2000 meters, contact our sales
department).
1.6-5.6 female 'Rx' and 'Tx' coaxial connectors: 75-ohm
coaxial cable interface with a range of 50 meters.
*
This operation way of 'HW ERROR' LED is valid for 1.42 microcontroller
module firmware version (and later versions).
