5.1.2. BC 2000 CAB W connection modules.
Code 620-000-001. BC 2000 CAB W.
Each connection module allows 3 shielded RJ45 ribbon cables to be connected and led out to
the BC2000DF rack boards, and separates the four signals carried by each ribbon cable, taking
each one of them to a WAGO 3-pole connector.
The ground pin of the WAGO connector is connected by default to system ground. If this is not
appropriate, the ground pin can be isolated removing the necessary programming jumpers
located in the back of the module. Programming jumpers J4, J7, J10 y J13 correspond to
signals 1, 2, 3 and 4 of the left RJ45 connector. Programming jumpers J5, J8, J11 y J14
correspond to signals 1, 2, 3 and 4 of the central RJ45 connector. Programming jumpers J6, J9,
J12 y J15 correspond to signals 1, 2, 3 and 4 of the right RJ45 connector. Programming jumper
J16 connects metal chassis to system ground.
Each module is supplied with 12 easily connected WAGO exposed female connectors.

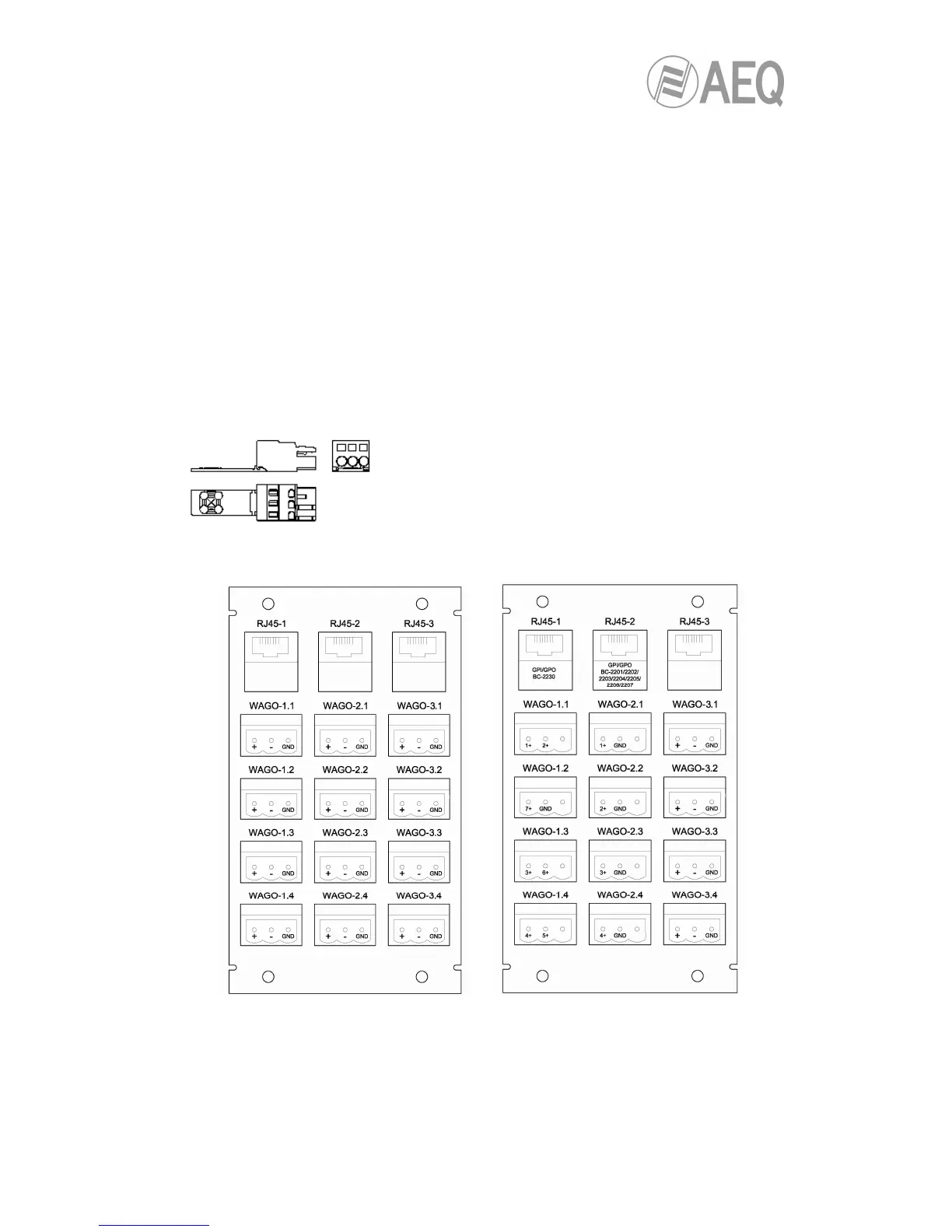

RJ45 to WAGO conversion examples:
This type of module allows you to connect as many as 72 circuits in a single rack.
Dimensions: 71.6 x 122 mm.
Approximate weight: 130 grams.
WAGO exposed female 3-pole connector. These
connectors have a fast connection mechanism that
works by simply inserting the wire, and a security
system to ensure the retention of all the wiring.
