3.14. BC2210. Intercom Panels Interfaces module.
General description.
The BC2210 board can manage the connection of up to 8 Digital Intercom Panels. This board is
inserted into the rear part of the BC2000DF rack.

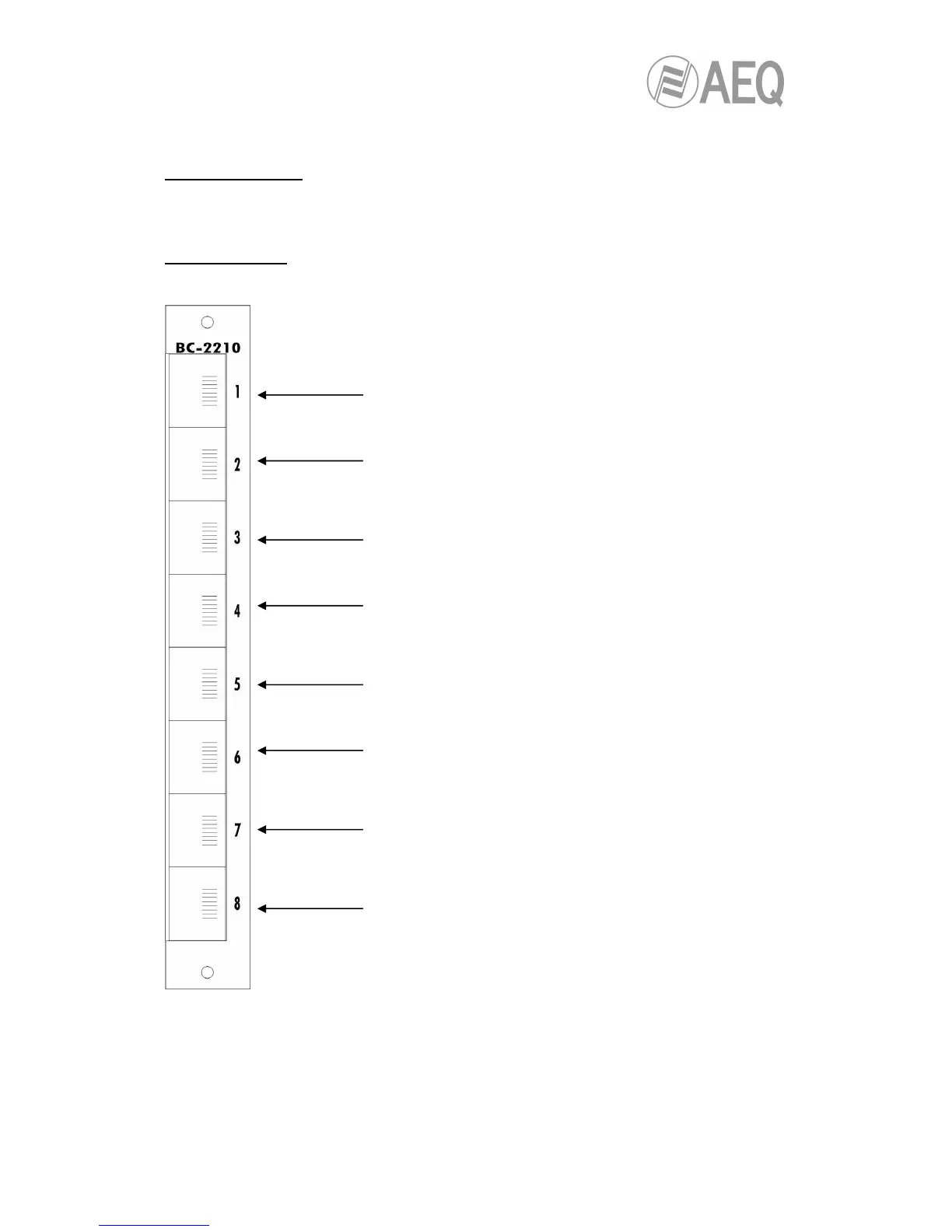

Panel description.
'1' RJ45 type connector: Connects to Digital Intercom
Terminal no. 1.
'2' RJ45 type connector: Connects to Digital Intercom
Terminal no. 2.
'3' RJ45 type connector: Connects to Digital Intercom
Terminal no. 3.
'4' RJ45 type connector: Connects to Digital Intercom
Terminal no. 4.
'5' RJ45 type connector: Connects to Digital Intercom
Terminal no. 5.
'6' RJ45 type connector: Connects to Digital Intercom
Terminal no. 6.
'7' RJ45 type connector: Connects to Digital Intercom
Terminal no. 7.
'8' RJ45 type connector: Connects to Digital Intercom
Terminal no. 8.
