4.2. BC2291. 350W Power Supply.
General description.
BC2000D system power supply. Delivers up to 350 watts between 2 48 V DC outputs.

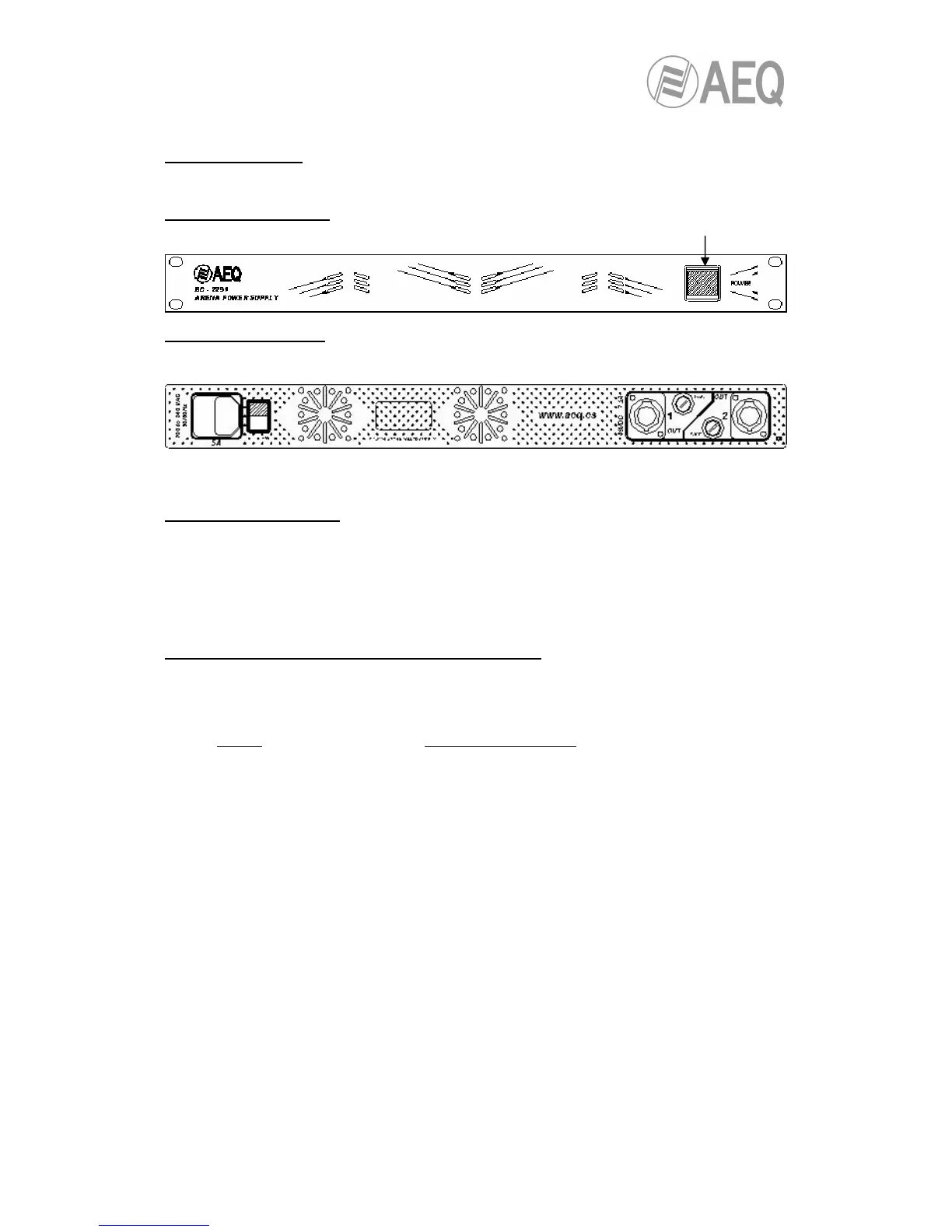

Front Panel Description.
Rear Panel Description.
Uses connectors with SPEAKON type interlock.
Associated with each of the SPEAKON connectors is a fuse carrier holding an 8-Ampere Type
T (timed) protective fuse.
Technical characteristics.
- Power supply: Autoranging, from 90 to 250 VAC, 50/60Hz.
- Output voltage: 48 volts DC.
- Maximum power: 350 W.
- Height: 1U.
- Depth: 121 mm.
- Weight: 3 kg.
Loading of power receivers type-approved for BC2291.
To calculate the number of equipment items that can be connected to this power supply, add
the estimated power consumption values for all the equipment and boards, leaving a 30-watts
safety margin.
Device Estimated consumption
BC2201 board 9 W
BC2202 board 4 W
BC2203M/BC2203ML board 6 W
BC2203MH/BC2203MHL board 7.5 W
BC2204/BC2205 board 9 W
BC2206/BC2207 board 4 W
BC2208/BC2208XF board 6 W
BC2209 board 8 W
BC2210 board 10 W
BC2211 board 8.5 W
BC2212 board 10.5 W
BC2312 board 10 W
BC2213 board 5 W
BC2214/BC2224 board 5 W
BC2215 board 4 W
BC2216 board 2 W
BC2217 board 4 W
BC2219 board 5 W
BC2220/BC2221 board 4 W
BC2240 board 10 W
BC2250 board 7 W
Power On switch and LED
