7.1. ARENA DM control module.
Composition of the supply
*
.
• The module itself.
• One 2-meter power supply cable.
• 5-meter flexible, shielded, crossed local network cable to connect frame and console
without switch.
* Console installation guide and CD with control surface setup software, firmware and
complete console manuals are included in the Frame supply.

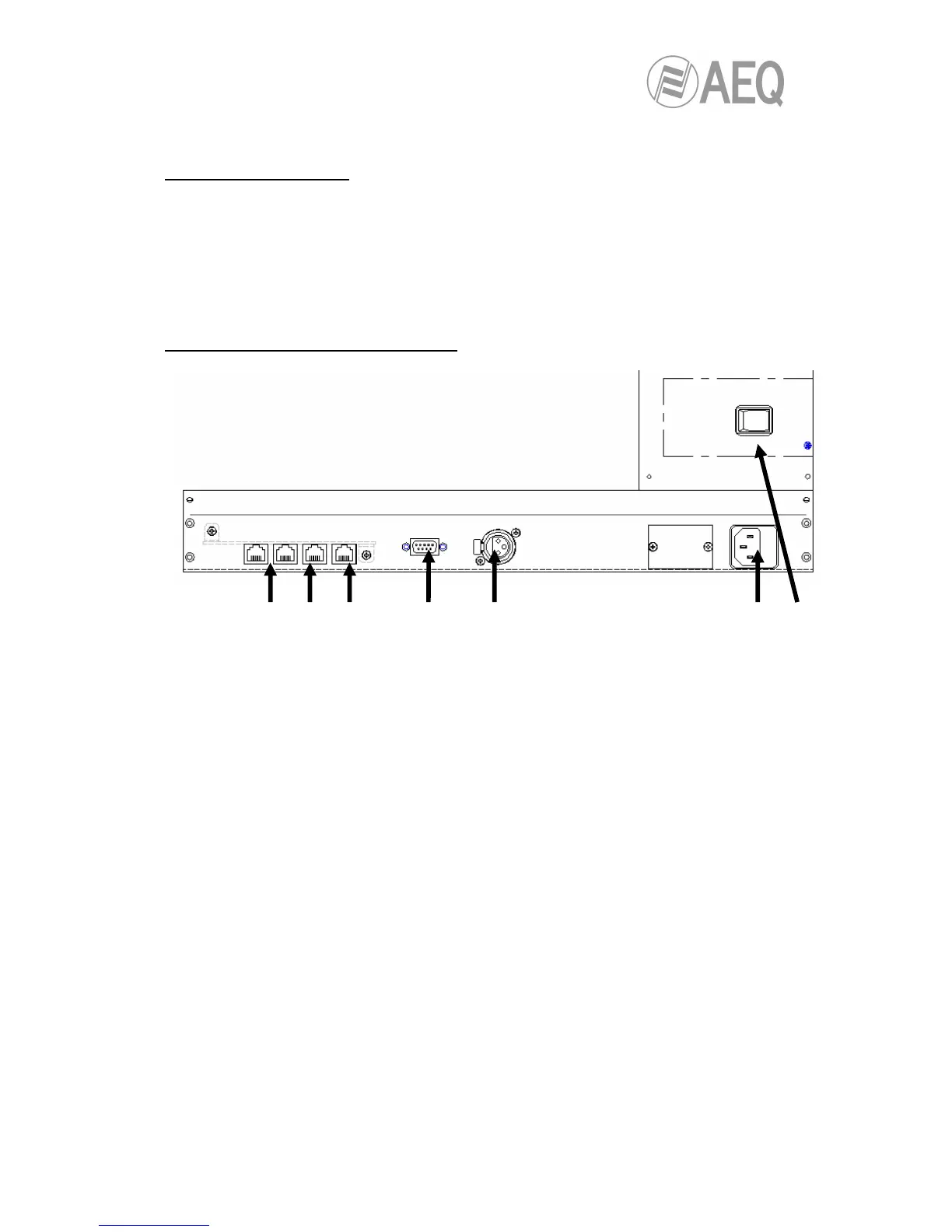

Connection and other rear panel elements.
• 1. Power switch.
• 2. Power supply connector and fuse.
• 3. Ethernet LAN: Connector linking data with the controller: a standard Ethernet cable
can be connected when connecting through a switch, or the crossed network cable that
is supplied (labeled “Only direct to controller”) can be used when a direct connection is
made.
• 4. RJ45 digital audio conector: Connects the digitalized output from the microphone
input and the inputs for VU meter 1, CUE and the control headphones. Pin layout, from
right to left, with the tongue facing up:
1. AES VU1 In+: AES/EBU audio input for VU meter 1.
2. AES VU1 In-: AES/EBU audio input for VU meter 1.
3. AES CUE In+: AES/EBU audio input for CUE.
4. AES Headph In+: AES/EBU audio input for the control headphones.
5. AES Headph In-: AES/EBU audio input for the control headphones.
6. AES CUE In-: AES/EBU audio input for CUE.
7. AES MIC Out+: AES/EBU audio output from the ARENA DM microphone.
8. AES MIC Out-: AES/EBU audio output from the ARENA DM microphone.
