5.1.3. RJ45 to 4 XLR connection modules.
• RJ45 to 4 XLR male connection modules. Code 522-900-501
• RJ45 to 4 XLR female connection modules. Code 620-000-002
• RJ45 to 2 XLR female and 2 XLR male connection modules. Code 522-900-503
Each connection module allows one shielded RJ45 ribbon cable to be connected and led out to
the BC2000DF rack boards, and separates the four signals carried by the ribbon cable, taking
each one of them to a 3-pole XLR connector. You may connect the ground pin of the XLR
connector or not, as appropriate; the module has the necessary programming jumpers for this
purpose (J1 for circuit 1, J2 for circuit 2 and so on).

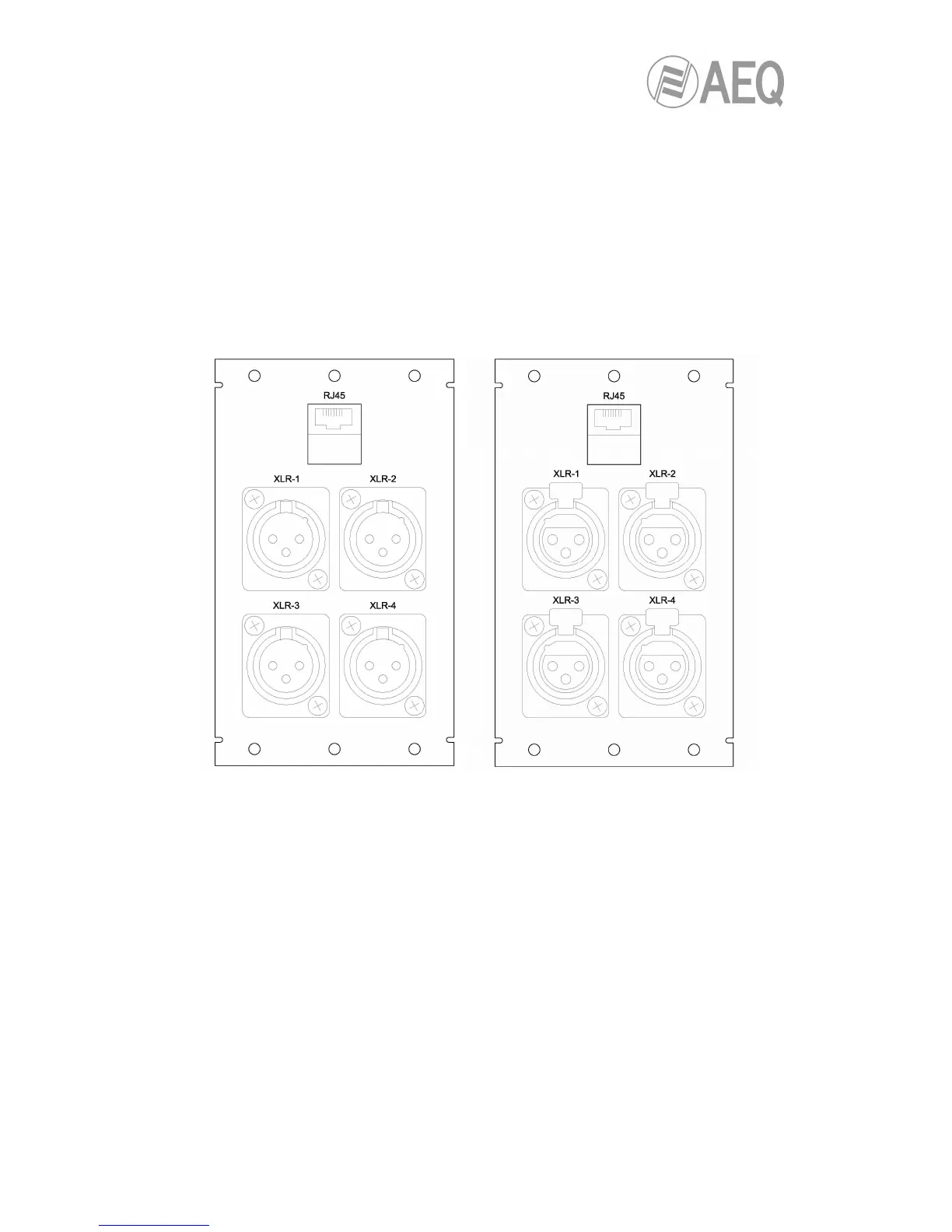

The connection modules with XLR connectors male and female looks as follows:
This type of module allows you to connect a maximum of 24 circuits in each rack.
XLR connector pin-out:
- Pin 1: GND
- Pin 2: V+
- Pin 3: V-
Dimensions: 71.6 x 122 mm.
Approximate weight: 233 grams.
