Other characteristics and features.
- Internal warning signal indicating a failure in one of the power supplies. If a failure occurs, the
“ALARM” LED on the BC2240 controller board will light up.
- Power feed circuit designed to support hot-swapping operations.
- Digital adjustment of analog gain (±12 dB) in the 4 inputs.
- Digital adjustment of digital gain (-40/+24dB) in the 4 inputs.
Programming jumpers.
This board has a series of internal programming jumpers (PJ). However, these jumpers are
configured at the factory and, in normal operation, do not need to be changed.
Firmware modules.
At the firmware level, this board is made up of the following modules:
- PIC microcontroller: manages board communications and start-up.
- FPGA programmable device: manages the converters and the TDM bus.
The firmware versions can be brought up to date by using the ”BC2000D Firmware Upgrade”
software application.

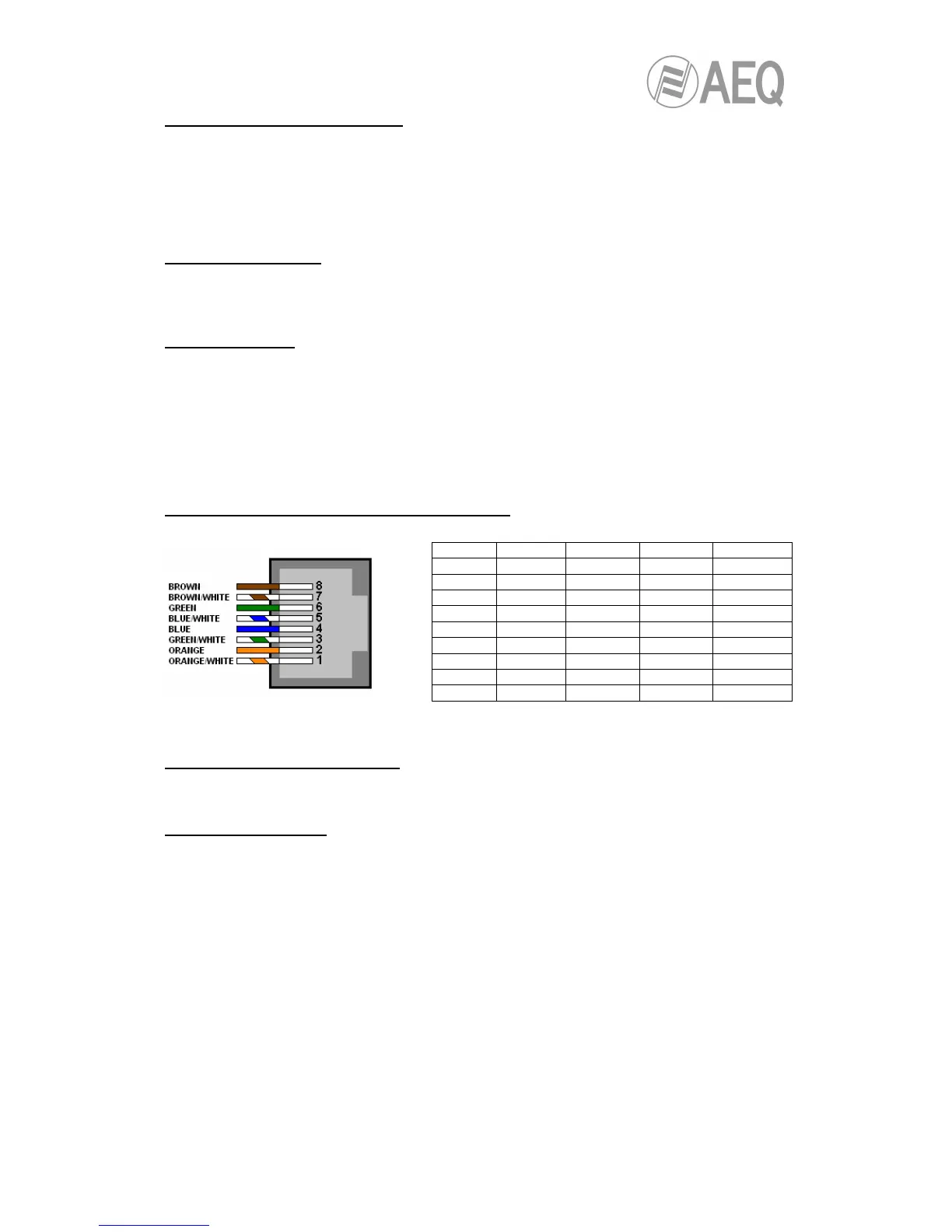

Signal layout in the RJ45 connectors of the board.
NOTE: Pin layout corresponds to T568B standard.
BC2203M technical specifications.
See BC2203MH module specifications.
General characteristics.
- Approximate consumption: 6 watts.
- Approximate dimensions:
Front: 17 x 172 mm.
Depth: 255 mm.
- Approximate weight: 400 grams.
Characteristics are subject to change without notice.
Pin '1' Inputs
-
'3' GPI '4' GPO
8 IN 2 V- - GND GPI2
