AM Series Boiler Heat Exchanger Maintenance & Replacement
Technical Instruction Document
Disconnecting Cables and Wiring Connections - Continued

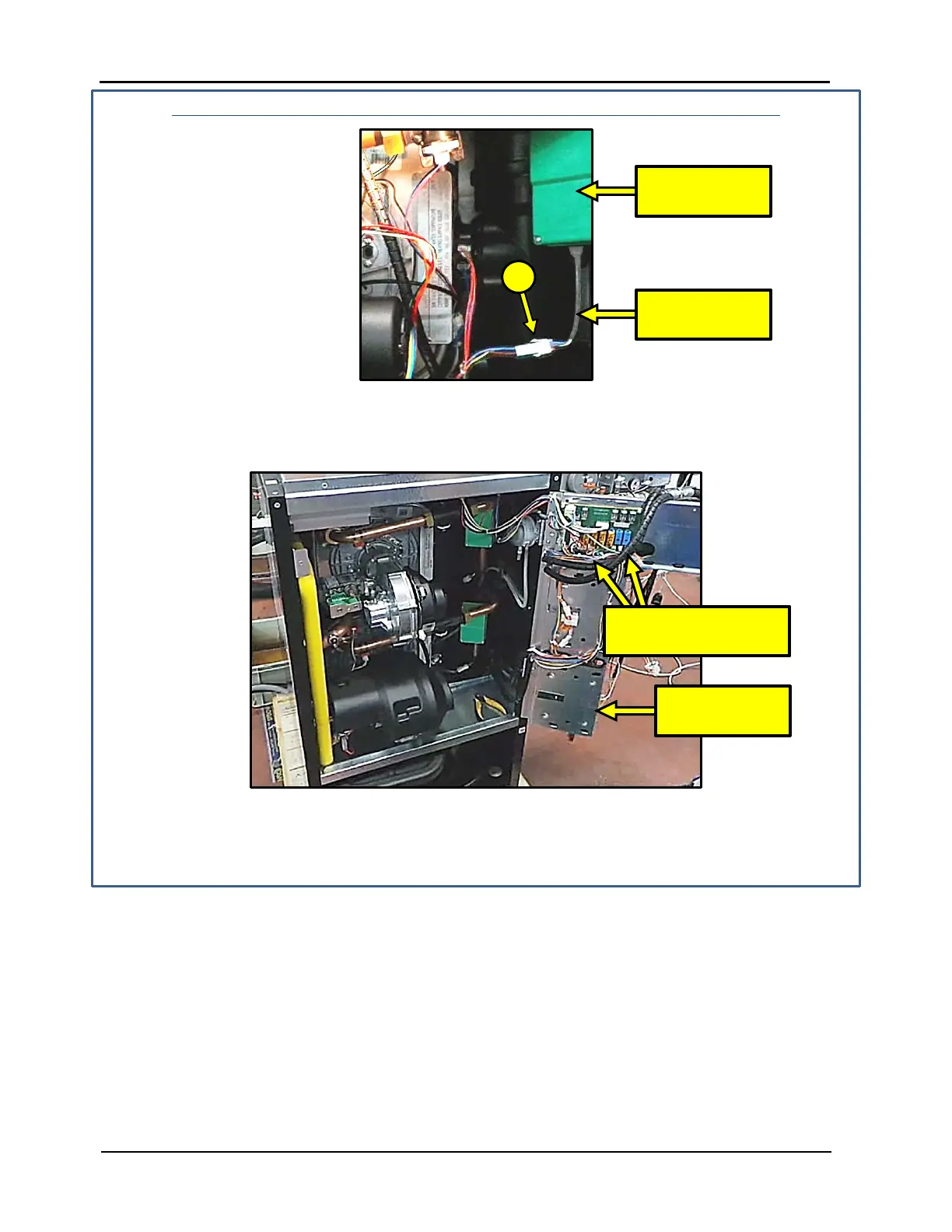

Figure 2-10: Disconnecting Power Cable of Motorized Valve
12. Gather all wire harnesses from under and around the heat exchanger and drape onto the open
panel door so that they are kept away from the heat exchanger (Figure 2-11).
Figure 2-11: Draping Cables and Harnesses onto Panel Door
13. This ends the wire harness preparation. Proceed to the next section for disassembly of the
heat exchanger from the unit.
STEP 12: CABLES &
HARNESSES
Page 11 of 36 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 TID-0137_0A
02/02/2015 Ph.: 800-526-0288
