APPENDIX K – C-MORE CONTROL PANEL VIEWS
Page 200 of 210 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0086_0D
03/20/14 Ph.: 800-526-0288 GF-133
P1
P2
P3
P4
P5
P6
SHELL HARNESS
CONNECTOR
(19 PIN)
GAS TRAIN HARNESS
CONNECTOR
(9 PIN)
A/F VALVE HARNESS
CONNECTOR
(16 PIN)
SENSOR
HARNESS
CONNECTOR
(7 PIN)
INTERLOCK HARNESS
CONNECTOR
(16 PIN)
TO INPUT/OUTPUT (I/O)
BOX
EXT. SENSOR/COMM
HARNESS CONNECTOR
(24 PIN)
TO INPUT/OUTPUT (I/O)
BOX

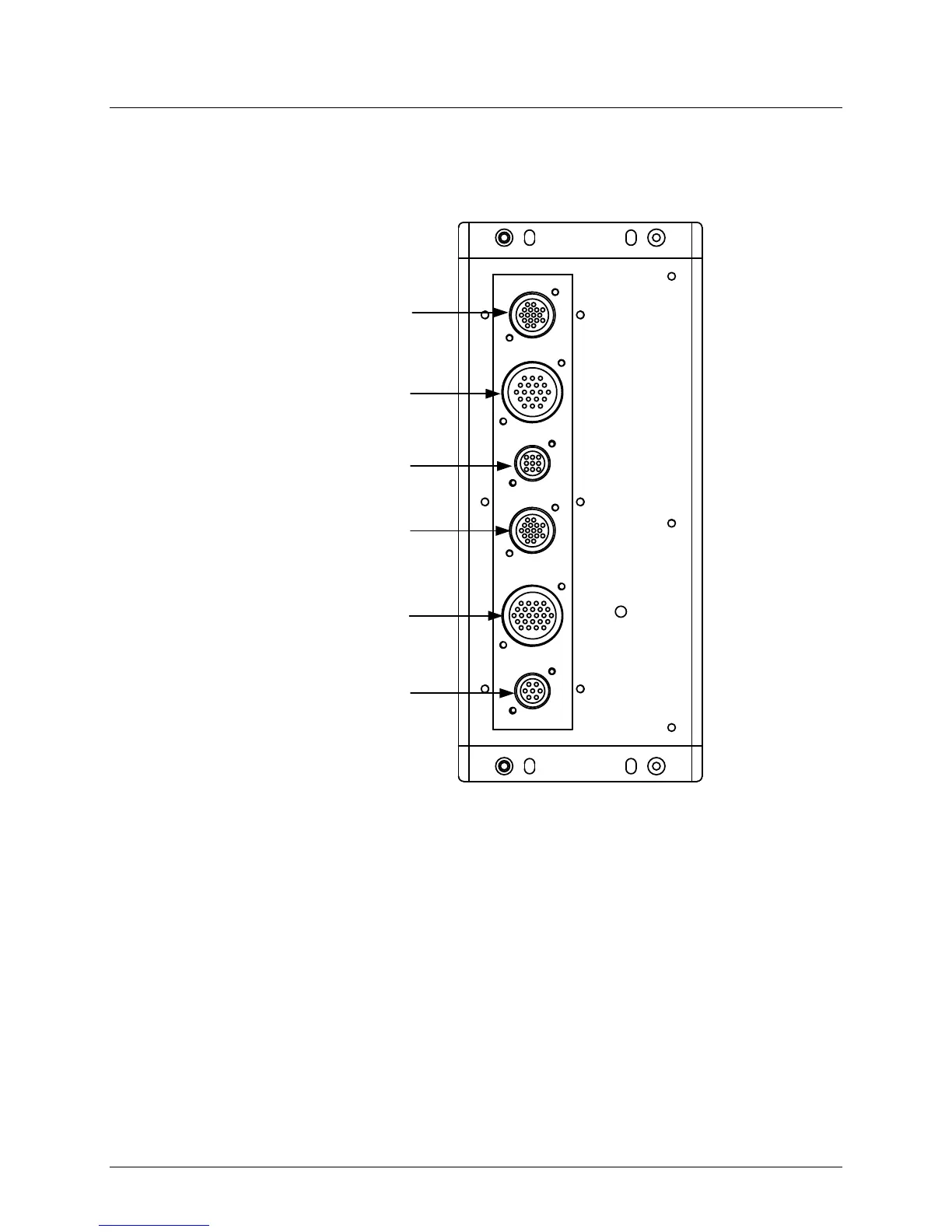

Figure K-2: Benchmark Control Panel Rear View
